Step1: Product

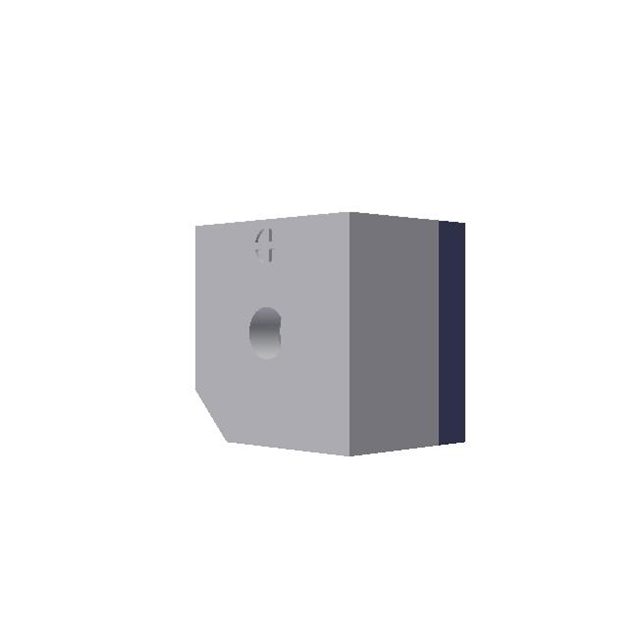

PUI Audio, Inc. SMT-1320-T-HT-R
Image shown is a representation only
Manufacturer
Manufacturer No
SMT-1320-T-HT-R
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
BUZZER MAGN 12V 13X13MM SMD
Detailed Description
Buzzers Transducer, Externally Driven Electromechanical/Magnetic 12 V 40mA 2kHz 90dB @ 12V, 10cm Surface Mount Solder Pads
DataSheet
Series
SMT
Frequency
2kHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Input Type
Zero-Peak Signal
Technology
Electromechanical/Magnetic
Part Status
Active
Termination
Solder Pads
Manufacturer
PUI Audio, Inc.
Mounting Type
Surface Mount
Port Location
Top
Voltage Range
8 ~ 16V
Voltage - Rated
12 V
Current - Supply
40mA
Driver Circuitry
Transducer, Externally Driven
Size / Dimension
0.512" L x 0.512" W (13.00mm x 13.00mm)
Height - Seated (Max)
0.406" (10.30mm)
Operating Temperature
-40°C ~ 105°C
Sound Pressure Level (SPL)
90dB @ 12V, 10cm
| Attribute | Value |
|---|---|
| Series | SMT |
| Frequency | 2kHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Input Type | Zero-Peak Signal |
| Technology | Electromechanical/Magnetic |
| Part Status | Active |
| Termination | Solder Pads |
| Manufacturer | PUI Audio, Inc. |
| Mounting Type | Surface Mount |
| Port Location | Top |
| Voltage Range | 8 ~ 16V |
| Voltage - Rated | 12 V |
| Current - Supply | 40mA |
| Driver Circuitry | Transducer, Externally Driven |
| Size / Dimension | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Height - Seated (Max) | 0.406" (10.30mm) |
| Operating Temperature | -40°C ~ 105°C |
| Sound Pressure Level (SPL) | 90dB @ 12V, 10cm |
