Step1: Product

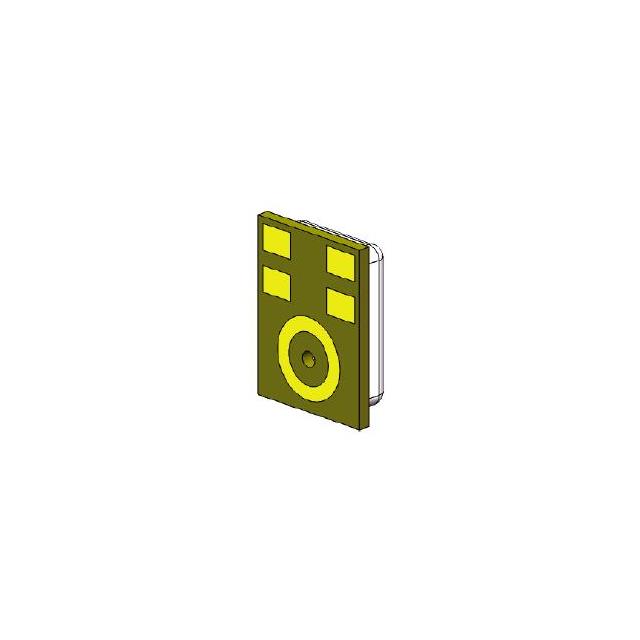

PUI Audio, Inc. DMM-3526-3-B
Image shown is a representation only
Manufacturer
Manufacturer No
DMM-3526-3-B
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
DIGITAL MICROPHONE -26DB 1.6VDC
Detailed Description
100 Hz ~ 10 kHz Digital, PDM Microphone MEMS (Silicon) 1.62 V ~ 3.6 V Omnidirectional (-26dB ±1dB @ 94dB SPL) Solder Pads
DataSheet
Type
MEMS (Silicon)
Shape
Rectangular
Series
DMM
Direction
Omnidirectional
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
S/N Ratio
64dB
Output Type
Digital, PDM
Part Status
Active
Sensitivity
-26dB ±1dB @ 94dB SPL
Termination
Solder Pads
Height (Max)
0.043" (1.08mm)
Manufacturer
PUI Audio, Inc.
Port Location
Top
Voltage Range
1.62 V ~ 3.6 V
Frequency Range
100 Hz ~ 10 kHz
Voltage - Rated
1.8 V
Current - Supply
550 µA
Size / Dimension
0.138" L x 0.104" W (3.50mm x 2.65mm)
| Attribute | Value |
|---|---|
| Type | MEMS (Silicon) |
| Shape | Rectangular |
| Series | DMM |
| Direction | Omnidirectional |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| S/N Ratio | 64dB |
| Output Type | Digital, PDM |
| Part Status | Active |
| Sensitivity | -26dB ±1dB @ 94dB SPL |
| Termination | Solder Pads |
| Height (Max) | 0.043" (1.08mm) |
| Manufacturer | PUI Audio, Inc. |
| Port Location | Top |
| Voltage Range | 1.62 V ~ 3.6 V |
| Frequency Range | 100 Hz ~ 10 kHz |
| Voltage - Rated | 1.8 V |
| Current - Supply | 550 µA |
| Size / Dimension | 0.138" L x 0.104" W (3.50mm x 2.65mm) |
