Step1: Product

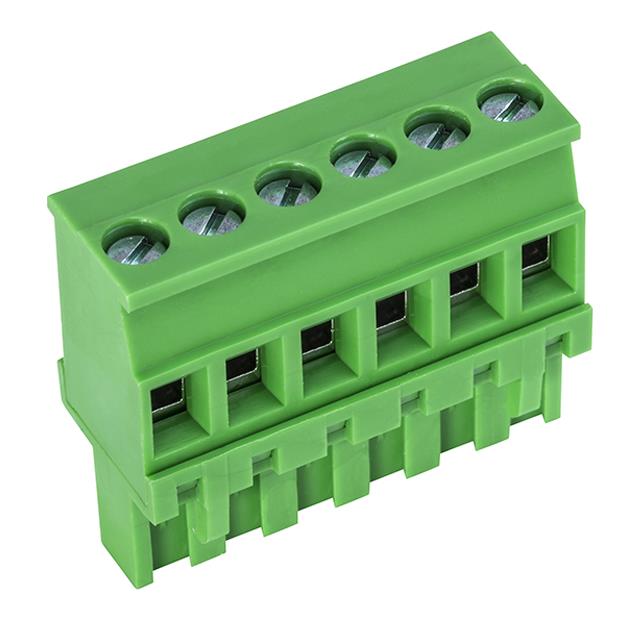

PTR Hartmann AK1100/2-5.0-GREEN
Image shown is a representation only
Manufacturer
Manufacturer No
AK1100/2-5.0-GREEN
Packaging
Box
Description
TERM BLOCK PLUG 2POS 5MM
Detailed Description
2 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 90° Free Hanging (In-Line)
DataSheet
Type
Plug, Female Sockets
Color
Green
Pitch
0.197" (5.00mm)
Series
AK1100
Features
Retention Latches (Wire Side)
Packaging
Box
Screw Size
M3
Part Status
Active
Current - UL
15 A
Manufacturer
PTR Hartmann
Voltage - UL
300 V
Mounting Type
Free Hanging (In-Line)
Torque - Screw
0.5 Nm (4.4 Lb-In)
Plug Wire Entry
90°
Contact Material
Bronze
Housing Material
Polyamide (PA66), Nylon 6/6
Number of Levels
1
Insulation Height
1.024" (26.01mm)
Termination Style
Screw - Rising Cage Clamp
Wire Strip Length
7mm
Number of Positions
2
Positions Per Level
2
Operating Temperature
-40°C ~ 105°C
Wire Gauge or Range - AWG
10-28 AWG
Wire Gauge or Range - mm²
0.2-4mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Plug, Female Sockets |
| Color | Green |
| Pitch | 0.197" (5.00mm) |
| Series | AK1100 |
| Features | Retention Latches (Wire Side) |
| Packaging | Box |
| Screw Size | M3 |
| Part Status | Active |
| Current - UL | 15 A |
| Manufacturer | PTR Hartmann |
| Voltage - UL | 300 V |
| Mounting Type | Free Hanging (In-Line) |
| Torque - Screw | 0.5 Nm (4.4 Lb-In) |
| Plug Wire Entry | 90° |
| Contact Material | Bronze |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Insulation Height | 1.024" (26.01mm) |
| Termination Style | Screw - Rising Cage Clamp |
| Wire Strip Length | 7mm |
| Number of Positions | 2 |
| Positions Per Level | 2 |
| Operating Temperature | -40°C ~ 105°C |
| Wire Gauge or Range - AWG | 10-28 AWG |
| Wire Gauge or Range - mm² | 0.2-4mm² |
| Material Flammability Rating | UL94 V-0 |
