Step1: Product

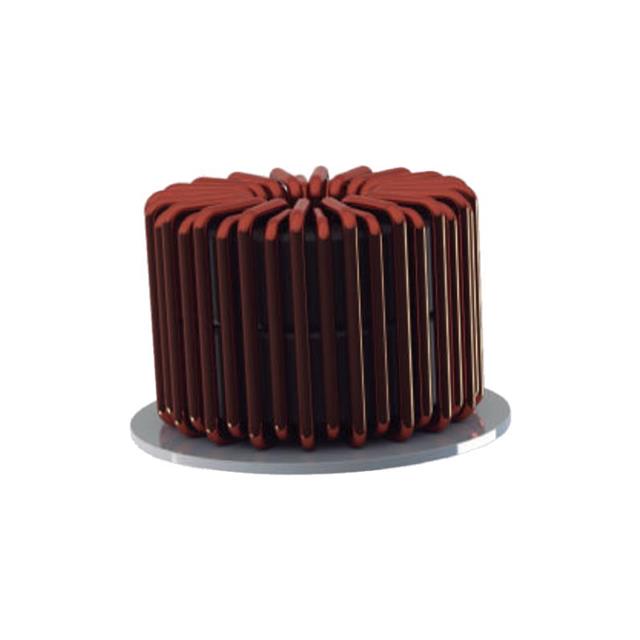

Premo S.L. PFCS260-8H
Image shown is a representation only
Manufacturer
Manufacturer No
PFCS260-8H
Package
Horizontal, 2 PC Pin
Packaging
Tray
Description
FIXED IND 260UH 8A 30 MOHM TH
Detailed Description
260 µH Unshielded Toroidal Inductor 8 A 30mOhm Max Horizontal, 2 PC Pin
DataSheet
Mfr
Premo S.L.
Type
Toroidal
Ratings
AEC-Q200
Packaging
Tray
Shielding
Unshielded
Tolerance
±12%
Inductance
260 µH
Part Status
Active
Mounting Type
Through Hole
Package / Case
Horizontal, 2 PC Pin
Material - Core
Sendust
Size / Dimension
1.736" Dia (44.10mm)
DC Resistance (DCR)
30mOhm Max
Current Rating (Amps)
8 A
Height - Seated (Max)
1.378" (35.00mm)
Operating Temperature
-40°C ~ 140°C
Supplier Device Package
Radial
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | Premo S.L. |
| Type | Toroidal |
| Ratings | AEC-Q200 |
| Packaging | Tray |
| Shielding | Unshielded |
| Tolerance | ±12% |
| Inductance | 260 µH |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | Horizontal, 2 PC Pin |
| Material - Core | Sendust |
| Size / Dimension | 1.736" Dia (44.10mm) |
| DC Resistance (DCR) | 30mOhm Max |
| Current Rating (Amps) | 8 A |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Operating Temperature | -40°C ~ 140°C |
| Supplier Device Package | Radial |
| Inductance Frequency - Test | 100 kHz |
