Step1: Product

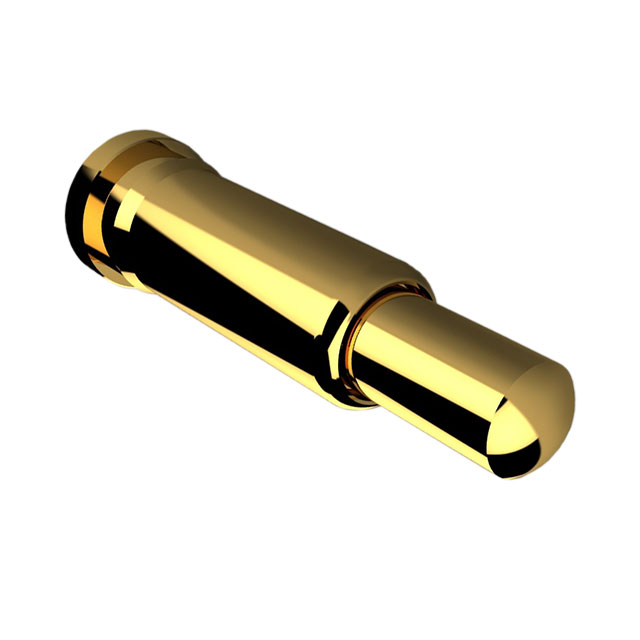

Preci-Dip 90151-AS
Image shown is a representation only
Manufacturer
Manufacturer No
90151-AS
Packaging
Bulk
Description
CONTACT SPRING LOADED SMD GOLD
Detailed Description
Contact Spring Surface Mount
DataSheet
Packaging
Bulk
Part Status
Obsolete
Contact Type
Sleeve & Plunger (Pogo Pins)
Manufacturer
Preci-Dip
Plunger Size
0.042" (1.07mm) Dia
Mating Cycles
40000
Mounting Type
Surface Mount
Contact Finish
Gold
Contact Material
Brass Alloy
Base Product Number
90151
Pad Layout Dimension
Circular - 0.072" (1.83mm)
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 125°C
Maximum Working Height
0.256" (6.50mm)
Minimum Working Height
0.201" (5.10mm)
Contact Finish Thickness
20.0µin (0.51µm)
Operating Force - Initial
25.49gf
Operating Force - Mid Compression
86.68gf
| Attribute | Value |
|---|---|
| Packaging | Bulk |
| Part Status | Obsolete |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Manufacturer | Preci-Dip |
| Plunger Size | 0.042" (1.07mm) Dia |
| Mating Cycles | 40000 |
| Mounting Type | Surface Mount |
| Contact Finish | Gold |
| Contact Material | Brass Alloy |
| Base Product Number | 90151 |
| Pad Layout Dimension | Circular - 0.072" (1.83mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 125°C |
| Maximum Working Height | 0.256" (6.50mm) |
| Minimum Working Height | 0.201" (5.10mm) |
| Contact Finish Thickness | 20.0µin (0.51µm) |
| Operating Force - Initial | 25.49gf |
| Operating Force - Mid Compression | 86.68gf |
