Step1: Product
Preci-Dip 801-83-012-10-005101

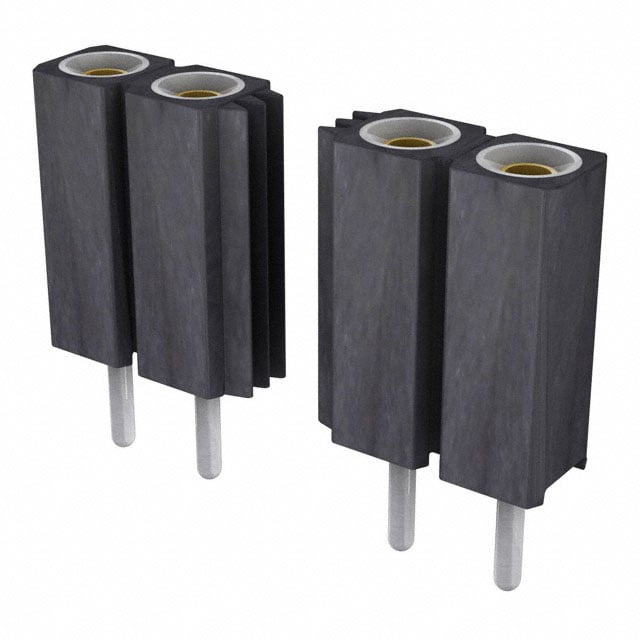

Image shown is a representation only
Manufacturer
Manufacturer No
801-83-012-10-005101
Packaging
Bulk
Description
INTERCONNECT RECTANGULAR
Detailed Description
12 Position Socket Connector 0.100" (2.54mm) Through Hole Gold
DataSheet
Mfr
Preci-Dip
Style
Board to Board
Series
801
Packaging
Bulk
Part Status
Active
Termination
Solder
Applications
General Purpose
Contact Type
Female Socket
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Socket
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Insulation Color
Black
Insulation Height
0.335" (8.50mm)
Number of Positions
12
Contact Finish - Post
Tin
Contact Length - Post
0.118" (3.00mm)
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Contact Finish Thickness - Mating
29.5µin (0.75µm)
| Attribute | Value |
|---|---|
| Mfr | Preci-Dip |
| Style | Board to Board |
| Series | 801 |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Female Socket |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Socket |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Insulation Color | Black |
| Insulation Height | 0.335" (8.50mm) |
| Number of Positions | 12 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.118" (3.00mm) |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
