Step1: Product
Preci-Dip 121-83-304-41-001101

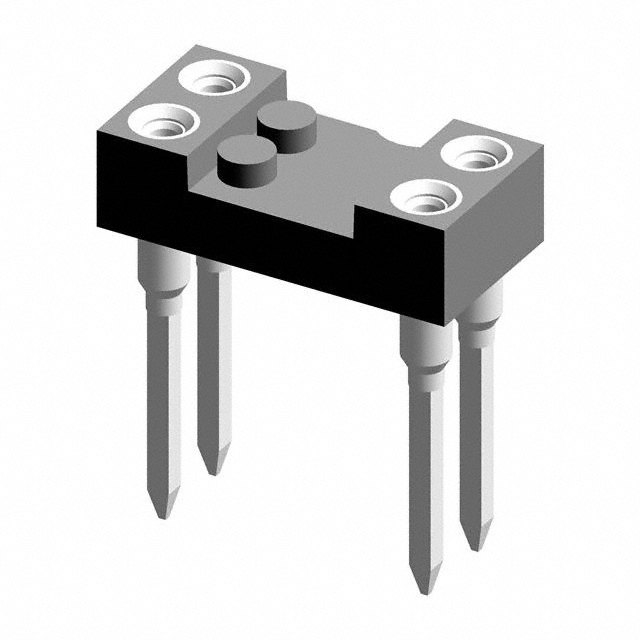

Image shown is a representation only
Manufacturer
Manufacturer No
121-83-304-41-001101
Packaging
Bulk
Description
CONN IC DIP SOCKET 4POS GOLD
Detailed Description
4 (2 x 2) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
DataSheet
Type
DIP, 0.3" (7.62mm) Row Spacing
Series
121
Features
Open Frame
Packaging
Bulk
Part Status
Active
Termination
Wire Wrap
Manufacturer
Preci-Dip
Pitch - Post
0.100" (2.54mm)
Mounting Type
Through Hole
Pitch - Mating
0.100" (2.54mm)
Housing Material
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Resistance
10mOhm
Base Product Number
121-83
Contact Finish - Post
Tin
Current Rating (Amps)
1 A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Contact Material - Post
Brass
Termination Post Length
0.260" (6.60mm)
Contact Material - Mating
Beryllium Copper
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
29.5µin (0.75µm)
Number of Positions or Pins (Grid)
4 (2 x 2)
| Attribute | Value |
|---|---|
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Series | 121 |
| Features | Open Frame |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Wire Wrap |
| Manufacturer | Preci-Dip |
| Pitch - Post | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Pitch - Mating | 0.100" (2.54mm) |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Contact Resistance | 10mOhm |
| Base Product Number | 121-83 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Material - Post | Brass |
| Termination Post Length | 0.260" (6.60mm) |
| Contact Material - Mating | Beryllium Copper |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Number of Positions or Pins (Grid) | 4 (2 x 2) |
