Step1: Product

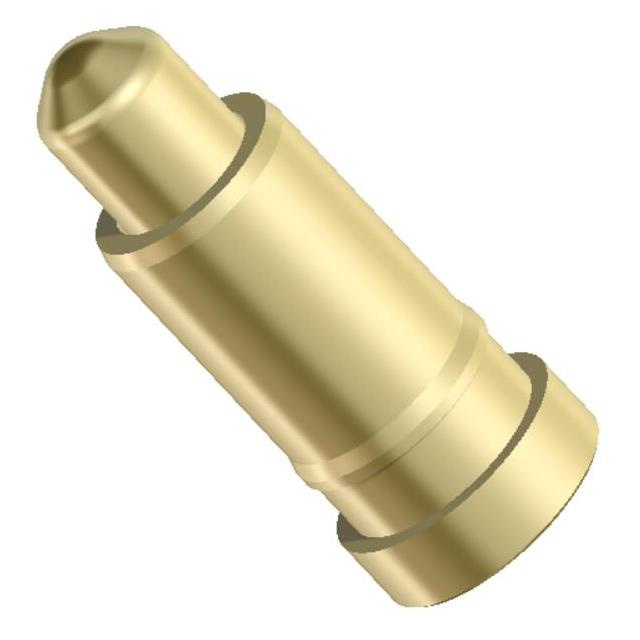

Preci-Dip 0900-1-CLIP
Image shown is a representation only
Manufacturer
Manufacturer No
0900-1-CLIP
Packaging
Bulk
Description
CONTACT SPRING LOADED SMD GOLD I
Detailed Description
Contact Spring Surface Mount
DataSheet
Series
0900
Packaging
Bulk
Part Status
Active
Contact Type
Sleeve & Plunger (Pogo Pins)
Manufacturer
Preci-Dip
Plunger Size
0.042" (1.07mm) Dia
Mating Cycles
20000
Mounting Type
Surface Mount
Contact Finish
Gold
Contact Material
Copper Alloy
Pad Layout Dimension
Circular - 0.072" (1.83mm)
Current Rating (Amps)
5A
Operating Temperature
-55°C ~ 125°C
Maximum Working Height
0.179" (4.55mm)
Minimum Working Height
0.148" (3.76mm)
Contact Finish Thickness
Flash
Operating Force - Initial
35.69gf
Recommended Working Height
0.156" (3.95mm)
Operating Force - Mid Compression
40.79gf
| Attribute | Value |
|---|---|
| Series | 0900 |
| Packaging | Bulk |
| Part Status | Active |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Manufacturer | Preci-Dip |
| Plunger Size | 0.042" (1.07mm) Dia |
| Mating Cycles | 20000 |
| Mounting Type | Surface Mount |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Pad Layout Dimension | Circular - 0.072" (1.83mm) |
| Current Rating (Amps) | 5A |
| Operating Temperature | -55°C ~ 125°C |
| Maximum Working Height | 0.179" (4.55mm) |
| Minimum Working Height | 0.148" (3.76mm) |
| Contact Finish Thickness | Flash |
| Operating Force - Initial | 35.69gf |
| Recommended Working Height | 0.156" (3.95mm) |
| Operating Force - Mid Compression | 40.79gf |
