Step1: Product
Power Integrations TOP264VG

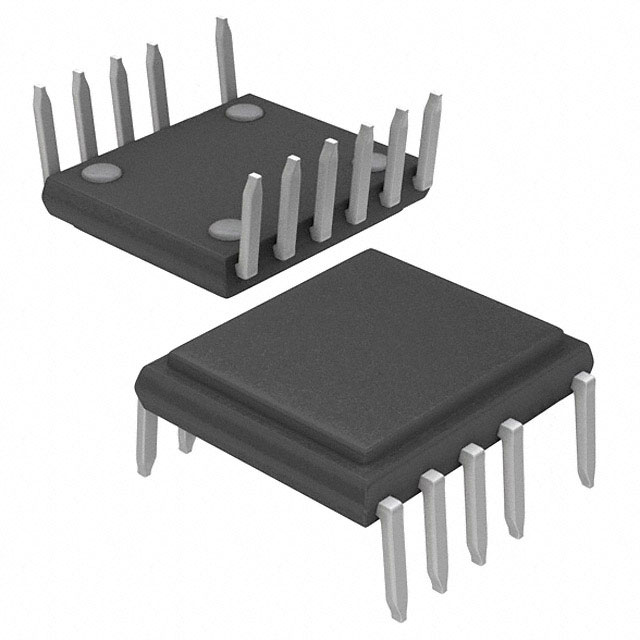

Image shown is a representation only
Manufacturer
Manufacturer No
TOP264VG
Quantity
279
Availability
In Stock
Package
12-SDIP (0.412", 10.46mm), 11 Leads, Exposed Pad
Packaging
Tube
Description
IC OFFLINE SWITCH FLYBACK 12EDIP
Detailed Description
Converter Offline Flyback Topology 66kHz, 132kHz eDIP-12
Datasheet
Series
TOPSwitch®-JX
Topology
Flyback
Packaging
Tube
Duty Cycle
78%
Manufacturer
Power Integrations
Mounting Type
Through Hole
Power (Watts)
34 W
Package / Case
12-SDIP (0.412", 10.46mm), 11 Leads, Exposed Pad
Control Features
Frequency Control
Fault Protection
Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Output Isolation
Isolated
Internal Switch(s)
Yes
Base Product Number
TOP264
Voltage - Breakdown
725V
Frequency - Switching
66kHz, 132kHz
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
eDIP-12
| Attribute | Value |
|---|---|
| Series | TOPSwitch®-JX |
| Topology | Flyback |
| Packaging | Tube |
| Duty Cycle | 78% |
| Manufacturer | Power Integrations |
| Mounting Type | Through Hole |
| Power (Watts) | 34 W |
| Package / Case | 12-SDIP (0.412", 10.46mm), 11 Leads, Exposed Pad |
| Control Features | Frequency Control |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Base Product Number | TOP264 |
| Voltage - Breakdown | 725V |
| Frequency - Switching | 66kHz, 132kHz |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | eDIP-12 |
