Step1: Product
Power Integrations LNK306PN

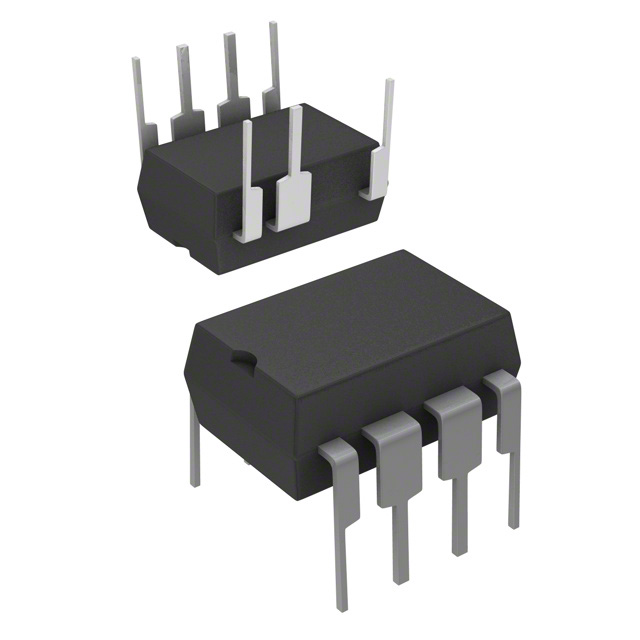

Image shown is a representation only
Manufacturer
Manufacturer No
LNK306PN
Quantity
2514
Availability
In Stock
Package
8-DIP (0.300", 7.62mm), 7 Leads
Packaging
Tube
Description
IC OFFLINE SWITCH MULT TOP 8DIP
Detailed Description
Converter Offline Buck, Buck-Boost, Flyback Topology 66kHz 8-PDIP-B
DataSheet
Series
LinkSwitch®-TN
Topology
Buck, Buck-Boost, Flyback
Packaging
Tube
Duty Cycle
69%
Part Status
Active
Manufacturer
Power Integrations
Mounting Type
Through Hole
Package / Case
8-DIP (0.300", 7.62mm), 7 Leads
Fault Protection
Current Limiting, Open Loop, Over Temperature, Short Circuit
Output Isolation
Non-Isolated
Internal Switch(s)
Yes
Base Product Number
LNK306
Voltage - Breakdown
700V
Frequency - Switching
66kHz
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
8-PDIP-B
| Attribute | Value |
|---|---|
| Series | LinkSwitch®-TN |
| Topology | Buck, Buck-Boost, Flyback |
| Packaging | Tube |
| Duty Cycle | 69% |
| Part Status | Active |
| Manufacturer | Power Integrations |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Short Circuit |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Base Product Number | LNK306 |
| Voltage - Breakdown | 700V |
| Frequency - Switching | 66kHz |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | 8-PDIP-B |
