Step1: Product

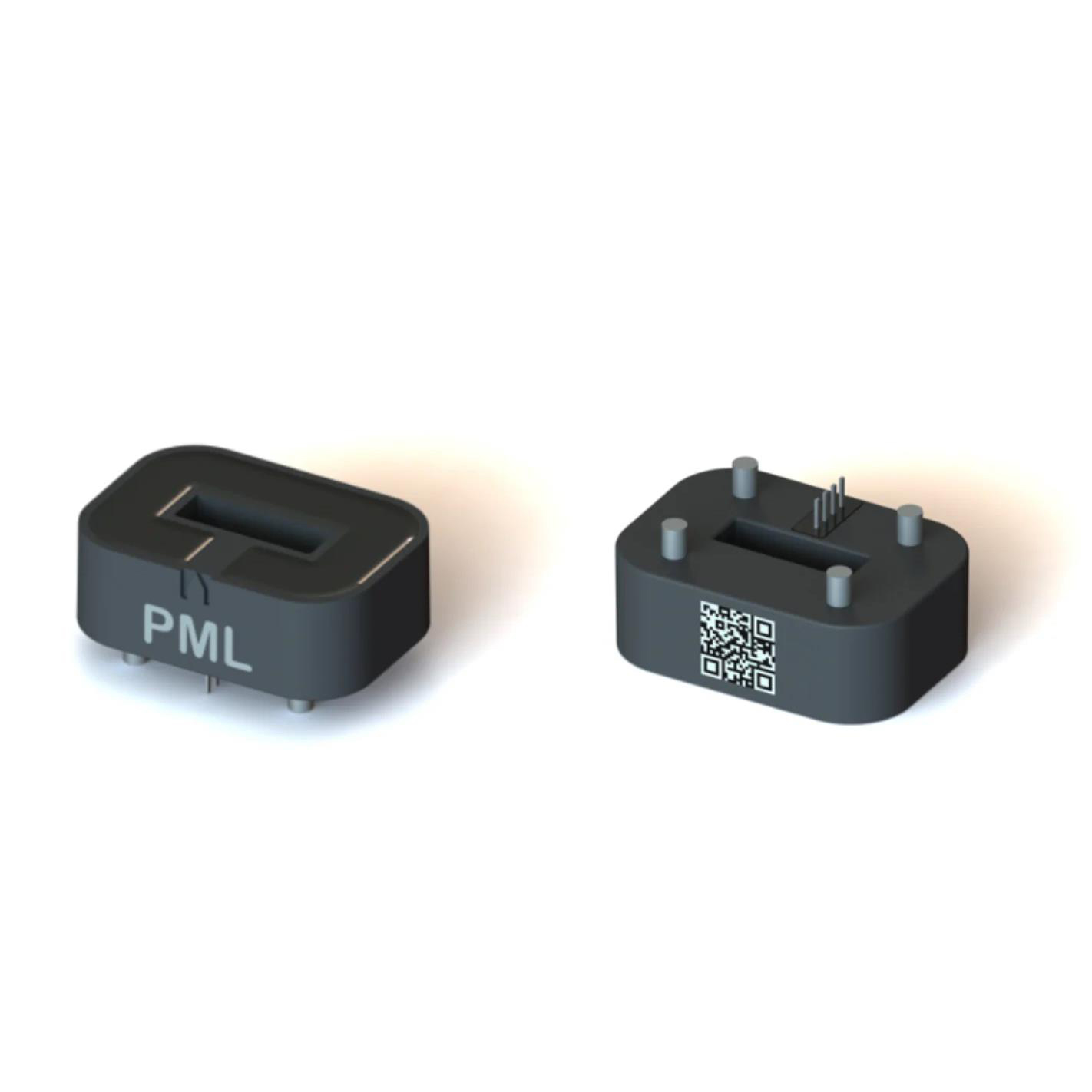

PML HNRB-500
Image shown is a representation only
Manufacturer
Manufacturer No
HNRB-500
Package
Module
Packaging
Bulk
Description
CURRENT SENSOR HE/OL 500A MODULE
Detailed Description
Current Sensor 500A Channel Hall Effect, Open Loop Bidirectional Module
DataSheet
Mfr
PML
Grade
Automotive
Output
Ratiometric, Voltage
Series
*
Accuracy
±1%
Frequency
DC ~ 50kHz
Linearity
±0.5%
Packaging
Bulk
Part Status
Active
Sensitivity
4mV/A
Sensor Type
Hall Effect, Open Loop
Polarization
Bidirectional
For Measuring
AC/DC
Mounting Type
Through Hole
Response Time
6µs
Package / Case
Module
Voltage - Supply
5V
Current - Sensing
500A
Operating Temperature
-40°C ~ 150°C
Current - Supply (Max)
15mA
Supplier Device Package
Module
| Attribute | Value |
|---|---|
| Mfr | PML |
| Grade | Automotive |
| Output | Ratiometric, Voltage |
| Series | * |
| Accuracy | ±1% |
| Frequency | DC ~ 50kHz |
| Linearity | ±0.5% |
| Packaging | Bulk |
| Part Status | Active |
| Sensitivity | 4mV/A |
| Sensor Type | Hall Effect, Open Loop |
| Polarization | Bidirectional |
| For Measuring | AC/DC |
| Mounting Type | Through Hole |
| Response Time | 6µs |
| Package / Case | Module |
| Voltage - Supply | 5V |
| Current - Sensing | 500A |
| Operating Temperature | -40°C ~ 150°C |
| Current - Supply (Max) | 15mA |
| Supplier Device Package | Module |
