Step1: Product
Picker Components PTRA-1C-120S-1-X

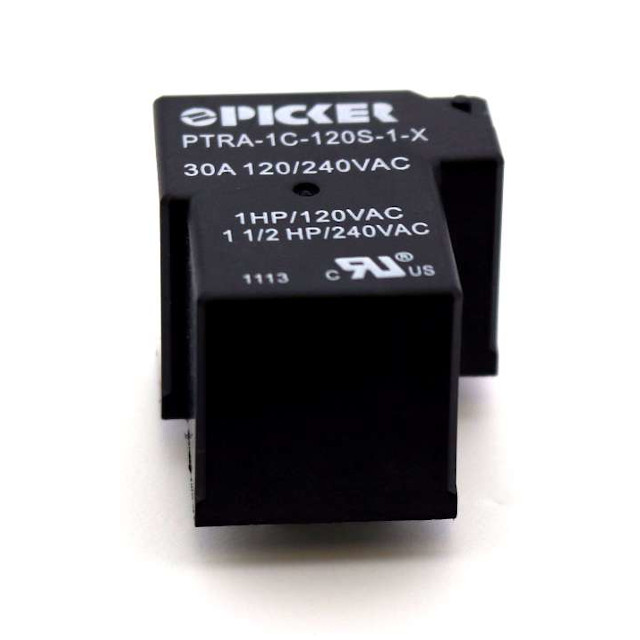

Image shown is a representation only
Manufacturer
Manufacturer No
PTRA-1C-120S-1-X
Packaging
Tube
Description
RELAY GEN PURPOSE SPDT 40A 120V
Detailed Description
General Purpose Relay SPDT (1 Form C) 120VAC Coil Through Hole
Datasheet
Mfr
Picker Components
Series
PTRA
Coil Type
Non Latching
Packaging
Tube
Relay Type
General Purpose
Seal Rating
Sealed - Fully
Coil Current
39.5 mA
Coil Voltage
120VAC
Contact Form
SPDT (1 Form C)
Operate Time
15 ms
Release Time
10 ms
Mounting Type
Through Hole
Approval Agency
CUL, cURus, UL
Coil Insulation
Class F
Coil Resistance
3.04 kOhms
Contact Material
Silver Cadmium Oxide (AgCdO)
Switching Voltage
300VAC, 110VDC - Max
Termination Style
PC Pin
Base Product Number
PTRA-1C
Load - Max Switching
12000VA, 4400W
Must Operate Voltage
90 VAC
Must Release Voltage
36 VAC
Operating Temperature
-55°C ~ 100°C
Contact Rating (Current)
40 A
| Attribute | Value |
|---|---|
| Mfr | Picker Components |
| Series | PTRA |
| Coil Type | Non Latching |
| Packaging | Tube |
| Relay Type | General Purpose |
| Seal Rating | Sealed - Fully |
| Coil Current | 39.5 mA |
| Coil Voltage | 120VAC |
| Contact Form | SPDT (1 Form C) |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Mounting Type | Through Hole |
| Approval Agency | CUL, cURus, UL |
| Coil Insulation | Class F |
| Coil Resistance | 3.04 kOhms |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Switching Voltage | 300VAC, 110VDC - Max |
| Termination Style | PC Pin |
| Base Product Number | PTRA-1C |
| Load - Max Switching | 12000VA, 4400W |
| Must Operate Voltage | 90 VAC |
| Must Release Voltage | 36 VAC |
| Operating Temperature | -55°C ~ 100°C |
| Contact Rating (Current) | 40 A |
