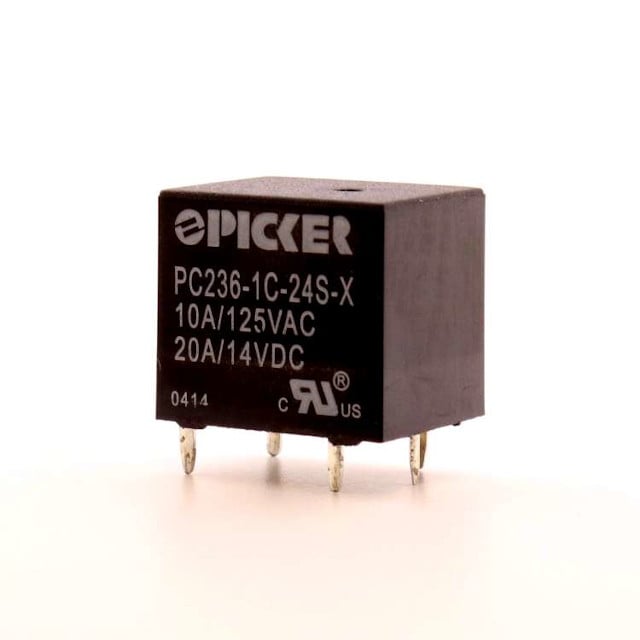

Picker Components PC236-1C-24S-X
Image shown is a representation only
Manufacturer
Manufacturer No
PC236-1C-24S-X
Packaging
Tube
Description
RELAY GEN PURPOSE SPDT 20A 24V
Detailed Description
General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
DataSheet
Mfr
Picker Components
Series
PC236
Coil Type
Non Latching
Packaging
Tube
Relay Type
General Purpose
Part Status
Active
Seal Rating
Sealed - Fully
Coil Current
25 mA
Coil Voltage
24VDC
Contact Form
SPDT (1 Form C)
Operate Time
10 ms
Release Time
5 ms
Mounting Type
Through Hole
Approval Agency
cURus
Coil Insulation
Class B
Coil Resistance
960 Ohms
Contact Material
Silver Tin Oxide (AgSnO)
Switching Voltage
277VAC, 48VDC - Max
Termination Style
PC Pin
Base Product Number
PC236-1C
Load - Max Switching
5540VA, 960W
Must Operate Voltage
18 VDC
Must Release Voltage
2.4 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
20 A
| Attribute | Value |
|---|---|
| Mfr | Picker Components |
| Series | PC236 |
| Coil Type | Non Latching |
| Packaging | Tube |
| Relay Type | General Purpose |
| Part Status | Active |
| Seal Rating | Sealed - Fully |
| Coil Current | 25 mA |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Mounting Type | Through Hole |
| Approval Agency | cURus |
| Coil Insulation | Class B |
| Coil Resistance | 960 Ohms |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Switching Voltage | 277VAC, 48VDC - Max |
| Termination Style | PC Pin |
| Base Product Number | PC236-1C |
| Load - Max Switching | 5540VA, 960W |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 20 A |
