Step1: Product
Picker Components PC118-4C-P-24A-X

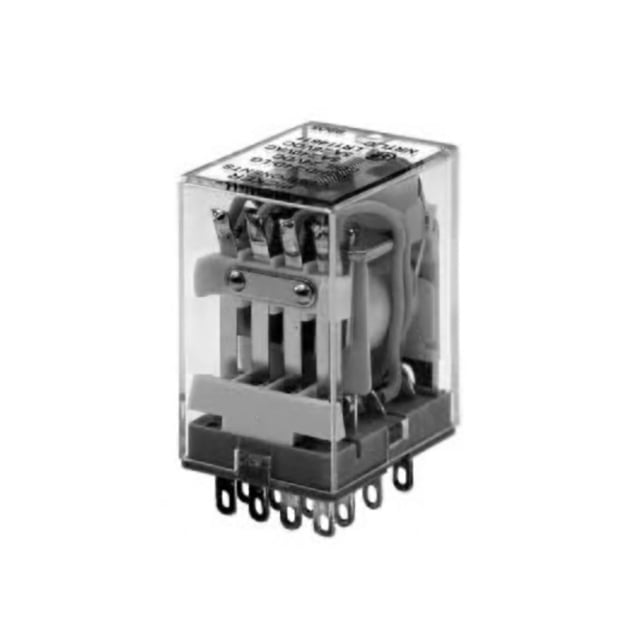

Image shown is a representation only
Manufacturer
Manufacturer No
PC118-4C-P-24A-X
Packaging
Tray
Description
RELAY GEN PURPOSE 4PDT 5A 24V
Detailed Description
General Purpose Relay 4PDT (4 Form C) 24VAC Coil Through Hole
Datasheet
Mfr
Picker Components
Series
PC118
Coil Type
Non Latching
Packaging
Tray
Relay Type
General Purpose
Coil Current
130.4 mA
Coil Voltage
24VAC
Contact Form
4PDT (4 Form C)
Operate Time
25 ms
Release Time
25 ms
Mounting Type
Through Hole
Approval Agency
cURus
Coil Resistance
184 Ohms
Contact Material
Silver Cadmium Oxide (AgCdO)
Switching Voltage
220VAC, 28VDC - Max
Termination Style
PC Pin
Base Product Number
PC118-4C
Load - Max Switching
1100VA, 140W
Must Operate Voltage
19.2 VAC
Must Release Voltage
7.2 VAC
Operating Temperature
-55°C ~ 70°C
Contact Rating (Current)
5 A
| Attribute | Value |
|---|---|
| Mfr | Picker Components |
| Series | PC118 |
| Coil Type | Non Latching |
| Packaging | Tray |
| Relay Type | General Purpose |
| Coil Current | 130.4 mA |
| Coil Voltage | 24VAC |
| Contact Form | 4PDT (4 Form C) |
| Operate Time | 25 ms |
| Release Time | 25 ms |
| Mounting Type | Through Hole |
| Approval Agency | cURus |
| Coil Resistance | 184 Ohms |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Switching Voltage | 220VAC, 28VDC - Max |
| Termination Style | PC Pin |
| Base Product Number | PC118-4C |
| Load - Max Switching | 1100VA, 140W |
| Must Operate Voltage | 19.2 VAC |
| Must Release Voltage | 7.2 VAC |
| Operating Temperature | -55°C ~ 70°C |
| Contact Rating (Current) | 5 A |
