Step1: Product
Phoenix Contact 1912320

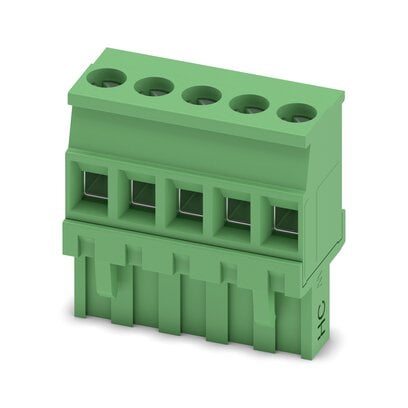

Image shown is a representation only
Manufacturer
Manufacturer No
1912320
Packaging
Bulk
Description
TERM BLOCK PLUG 5POS 5MM
Detailed Description
5 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 90° Free Hanging (In-Line)
Datasheet
Type
Plug, Female Sockets
Color
Green
Pitch
0.197" (5.00mm)
Series
COMBICON MVSTBR
Features
Retention Latches (Wire Side)
Packaging
Bulk
Screw Size
M3
Current - UL
16 A
Manufacturer
Phoenix Contact
Voltage - UL
300 V
Current - IEC
16A
Mounting Type
Free Hanging (In-Line)
Voltage - IEC
630 V
Torque - Screw
0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry
90°
Housing Material
Polyamide (PA), Nylon
Number of Levels
1
Insulation Height
1.024" (26.01mm)
Termination Style
Screw - Rising Cage Clamp
Wire Strip Length
7mm
Number of Positions
5
Positions Per Level
5
Contact Mating Finish
Tin
Wire Gauge or Range - AWG
12-30 AWG
Wire Gauge or Range - mm²
0.2-2.5mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Plug, Female Sockets |
| Color | Green |
| Pitch | 0.197" (5.00mm) |
| Series | COMBICON MVSTBR |
| Features | Retention Latches (Wire Side) |
| Packaging | Bulk |
| Screw Size | M3 |
| Current - UL | 16 A |
| Manufacturer | Phoenix Contact |
| Voltage - UL | 300 V |
| Current - IEC | 16A |
| Mounting Type | Free Hanging (In-Line) |
| Voltage - IEC | 630 V |
| Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Plug Wire Entry | 90° |
| Housing Material | Polyamide (PA), Nylon |
| Number of Levels | 1 |
| Insulation Height | 1.024" (26.01mm) |
| Termination Style | Screw - Rising Cage Clamp |
| Wire Strip Length | 7mm |
| Number of Positions | 5 |
| Positions Per Level | 5 |
| Contact Mating Finish | Tin |
| Wire Gauge or Range - AWG | 12-30 AWG |
| Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Material Flammability Rating | UL94 V-0 |
