Step1: Product

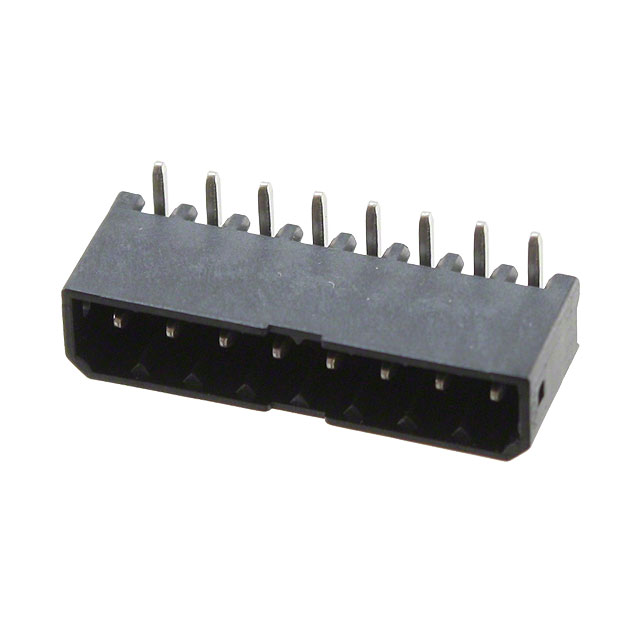

Phoenix Contact 1778683
Image shown is a representation only
Manufacturer
Manufacturer No
1778683
Quantity
30
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TERM BLOCK HDR 8POS 2.50MM
Detailed Description
8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.098" (2.50mm) 90°, Right Angle Through Hole
DataSheet
Type
Header, Male Pins, Shrouded (4 Side)
Color
Black
Pitch
0.098" (2.50mm)
Series
COMBICON PTSM
Features
Pick and Place Cap
Packaging
Tape & Reel (TR); Cut Tape (CT)
Part Status
Active
Manufacturer
Phoenix Contact
Current - IEC
6A
Mounting Type
Through Hole
Voltage - IEC
160 V
Housing Material
Liquid Crystal Polymer (LCP)
Number of Levels
1
Insulation Height
0.197" (5.00mm)
Termination Style
Solder
Header Orientation
90°, Right Angle
Contact Tail Length
0.083" (2.10mm)
Number of Positions
8
Positions Per Level
8
Contact Mating Finish
Tin
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Color | Black |
| Pitch | 0.098" (2.50mm) |
| Series | COMBICON PTSM |
| Features | Pick and Place Cap |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Part Status | Active |
| Manufacturer | Phoenix Contact |
| Current - IEC | 6A |
| Mounting Type | Through Hole |
| Voltage - IEC | 160 V |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Number of Levels | 1 |
| Insulation Height | 0.197" (5.00mm) |
| Termination Style | Solder |
| Header Orientation | 90°, Right Angle |
| Contact Tail Length | 0.083" (2.10mm) |
| Number of Positions | 8 |
| Positions Per Level | 8 |
| Contact Mating Finish | Tin |
| Material Flammability Rating | UL94 V-0 |
