Step1: Product

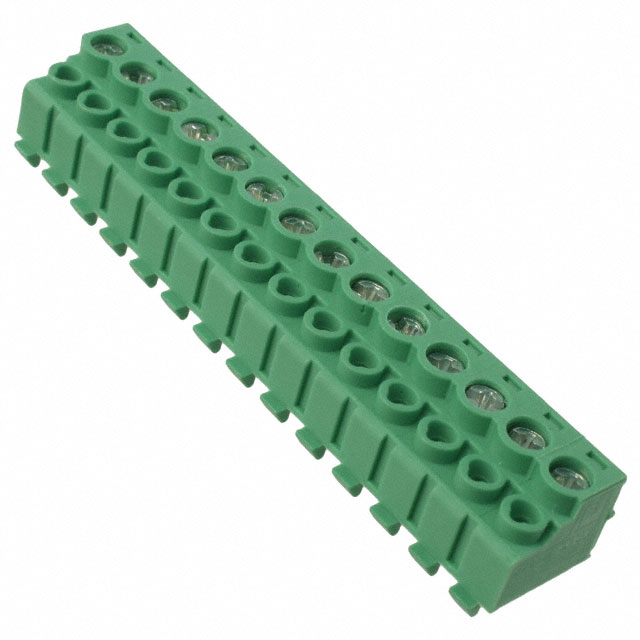

Phoenix Contact 1755855
Image shown is a representation only
Manufacturer
Manufacturer No
1755855
Packaging
Bulk
Description
TERM BLOCK PLUG 14POS 5MM
Detailed Description
14 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° Free Hanging (In-Line)
DataSheet
Type
Plug for Unshrouded Header
Color
Green
Pitch
0.197" (5.00mm)
Series
COMBICON PT
Packaging
Bulk
Part Status
Active
Current - UL
10 A
Manufacturer
Phoenix Contact
Voltage - UL
300 V
Current - IEC
10A
Mounting Type
Free Hanging (In-Line)
Voltage - IEC
630 V
Torque - Screw
0.35-0.4 Nm (3.1-3.5 Lb-In)
Plug Wire Entry
90°
Housing Material
Polyamide (PA), Nylon
Number of Levels
1
Insulation Height
0.484" (12.30mm)
Termination Style
Screw - Rising Cage Clamp
Wire Strip Length
6mm
Number of Positions
14
Positions Per Level
14
Contact Mating Finish
Tin
Wire Gauge or Range - AWG
14-28 AWG
Wire Gauge or Range - mm²
0.2-1.5mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Plug for Unshrouded Header |
| Color | Green |
| Pitch | 0.197" (5.00mm) |
| Series | COMBICON PT |
| Packaging | Bulk |
| Part Status | Active |
| Current - UL | 10 A |
| Manufacturer | Phoenix Contact |
| Voltage - UL | 300 V |
| Current - IEC | 10A |
| Mounting Type | Free Hanging (In-Line) |
| Voltage - IEC | 630 V |
| Torque - Screw | 0.35-0.4 Nm (3.1-3.5 Lb-In) |
| Plug Wire Entry | 90° |
| Housing Material | Polyamide (PA), Nylon |
| Number of Levels | 1 |
| Insulation Height | 0.484" (12.30mm) |
| Termination Style | Screw - Rising Cage Clamp |
| Wire Strip Length | 6mm |
| Number of Positions | 14 |
| Positions Per Level | 14 |
| Contact Mating Finish | Tin |
| Wire Gauge or Range - AWG | 14-28 AWG |
| Wire Gauge or Range - mm² | 0.2-1.5mm² |
| Material Flammability Rating | UL94 V-0 |
