Phoenix Contact 1754533

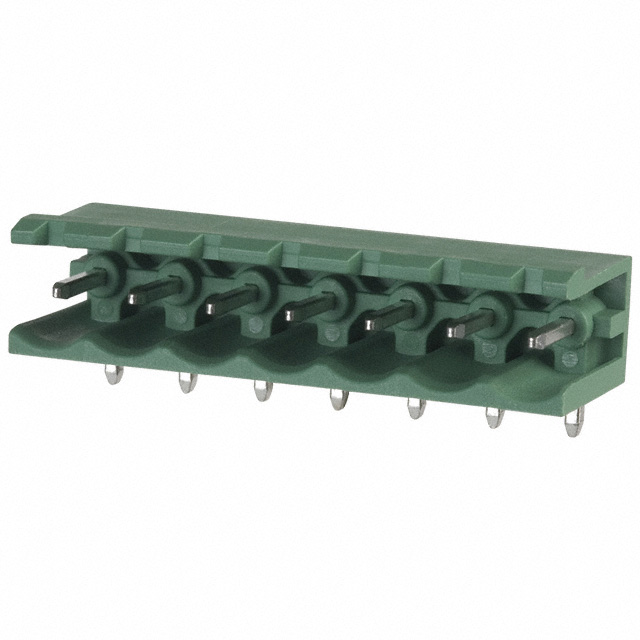

Image shown is a representation only
Manufacturer
Manufacturer No
1754533
Packaging
Bulk
Description
TERM BLOCK HDR 7POS 5MM
Detailed Description
7 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole
DataSheet
Type
Header, Male Pins, Shrouded (2 Side)
Color
Green
Pitch
0.197" (5.00mm)
Series
COMBICON MSTB
Packaging
Bulk
Part Status
Active
Current - UL
15 A
Manufacturer
Phoenix Contact
Voltage - UL
300 V
Current - IEC
12A
Mounting Type
Through Hole
Voltage - IEC
400 V
Housing Material
Polyamide (PA), Nylon
Number of Levels
1
Insulation Height
0.339" (8.61mm)
Termination Style
Solder
Header Orientation
90°, Right Angle
Contact Tail Length
0.138" (3.50mm)
Number of Positions
7
Positions Per Level
7
Contact Mating Finish
Tin
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (2 Side) |
| Color | Green |
| Pitch | 0.197" (5.00mm) |
| Series | COMBICON MSTB |
| Packaging | Bulk |
| Part Status | Active |
| Current - UL | 15 A |
| Manufacturer | Phoenix Contact |
| Voltage - UL | 300 V |
| Current - IEC | 12A |
| Mounting Type | Through Hole |
| Voltage - IEC | 400 V |
| Housing Material | Polyamide (PA), Nylon |
| Number of Levels | 1 |
| Insulation Height | 0.339" (8.61mm) |
| Termination Style | Solder |
| Header Orientation | 90°, Right Angle |
| Contact Tail Length | 0.138" (3.50mm) |
| Number of Positions | 7 |
| Positions Per Level | 7 |
| Contact Mating Finish | Tin |
| Material Flammability Rating | UL94 V-0 |
