Step1: Product

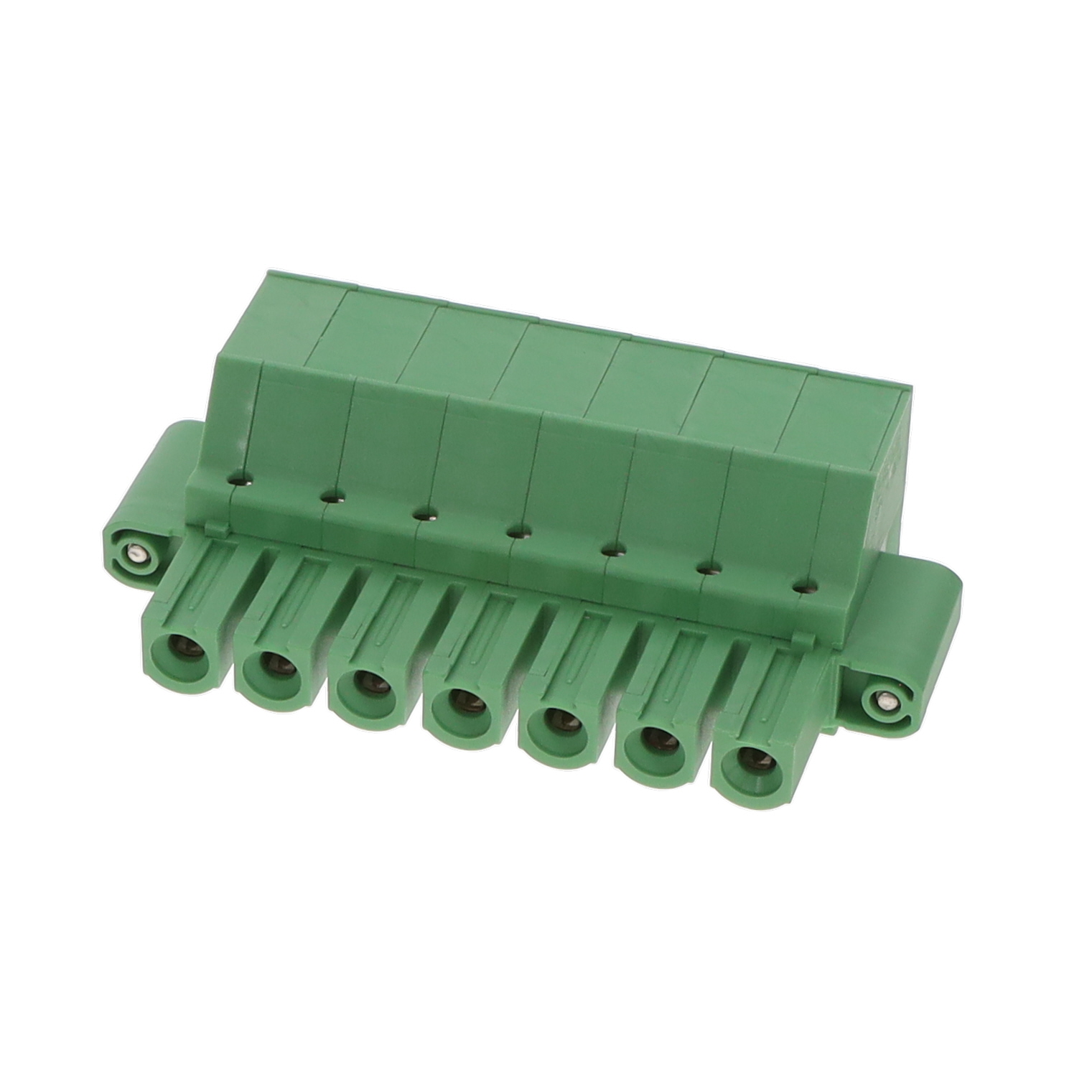

Phoenix Contact 1711420
Image shown is a representation only
Manufacturer
Manufacturer No
1711420
Packaging
Bulk
Description
TERM BLOCK PLUG 7POS 10.16MM
Detailed Description
7 Position Terminal Block Plug, Female Sockets 0.400" (10.16mm) 180° Free Hanging (In-Line)
Datasheet
Type
Plug, Female Sockets
Color
Green
Pitch
0.400" (10.16mm)
Series
COMBICON SPC
Features
Mating Flange
Packaging
Bulk
Current - UL
66 A
Manufacturer
Phoenix Contact
Voltage - UL
600 V
Current - IEC
76A
Mounting Type
Free Hanging (In-Line)
Voltage - IEC
1 kV
Plug Wire Entry
180°
Housing Material
Polyamide (PA), Nylon
Number of Levels
1
Insulation Height
0.988" (25.10mm)
Termination Style
Screwless - Spring Cage, Tension Clamp
Wire Strip Length
18mm
Number of Positions
7
Positions Per Level
7
Contact Mating Finish
Silver
Wire Gauge or Range - AWG
4-20 AWG
Wire Gauge or Range - mm²
0.75-16mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Plug, Female Sockets |
| Color | Green |
| Pitch | 0.400" (10.16mm) |
| Series | COMBICON SPC |
| Features | Mating Flange |
| Packaging | Bulk |
| Current - UL | 66 A |
| Manufacturer | Phoenix Contact |
| Voltage - UL | 600 V |
| Current - IEC | 76A |
| Mounting Type | Free Hanging (In-Line) |
| Voltage - IEC | 1 kV |
| Plug Wire Entry | 180° |
| Housing Material | Polyamide (PA), Nylon |
| Number of Levels | 1 |
| Insulation Height | 0.988" (25.10mm) |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Wire Strip Length | 18mm |
| Number of Positions | 7 |
| Positions Per Level | 7 |
| Contact Mating Finish | Silver |
| Wire Gauge or Range - AWG | 4-20 AWG |
| Wire Gauge or Range - mm² | 0.75-16mm² |
| Material Flammability Rating | UL94 V-0 |
