Phoenix Contact 1688395

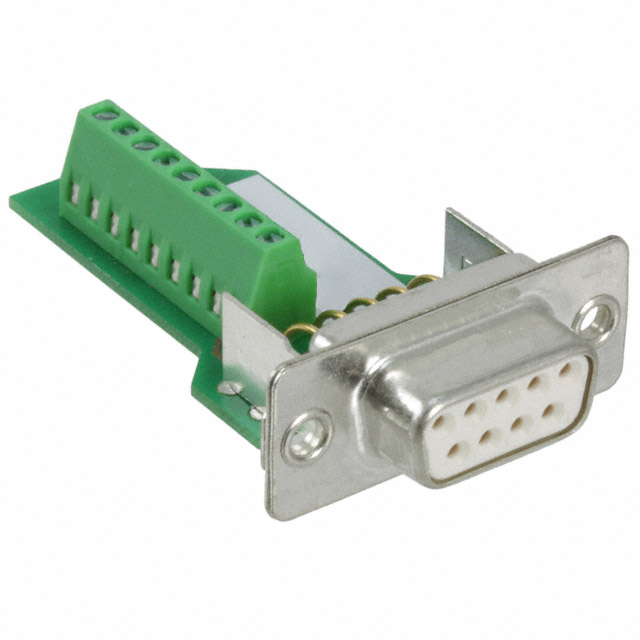

Image shown is a representation only
Manufacturer
Manufacturer No
1688395
Packaging
Bulk
Description
CONN D-SUB RCPT 9POS TERM BLK
Detailed Description
9 Position D-Sub Receptacle, Female Sockets Connector
DataSheet
Mfr
Phoenix Contact
Series
PLUSCON
Packaging
Bulk
Part Status
Active
Termination
Terminal Block
Contact Type
Signal
Mounting Type
Free Hanging (In-Line)
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Housing/Shell (Unthreaded)
Number of Rows
2
Voltage Rating
60V
Connector Style
D-Sub
Contact Material
Copper Alloy
Ingress Protection
IP20
Dielectric Material
Polybutylene Terephthalate (PBT), Polyester
Number of Positions
9
Current Rating (Amps)
10A
Operating Temperature
-20°C ~ 80°C
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
1 (DE, E)
| Attribute | Value |
|---|---|
| Mfr | Phoenix Contact |
| Series | PLUSCON |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Terminal Block |
| Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 |
| Voltage Rating | 60V |
| Connector Style | D-Sub |
| Contact Material | Copper Alloy |
| Ingress Protection | IP20 |
| Dielectric Material | Polybutylene Terephthalate (PBT), Polyester |
| Number of Positions | 9 |
| Current Rating (Amps) | 10A |
| Operating Temperature | -20°C ~ 80°C |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 1 (DE, E) |
