Step1: Product

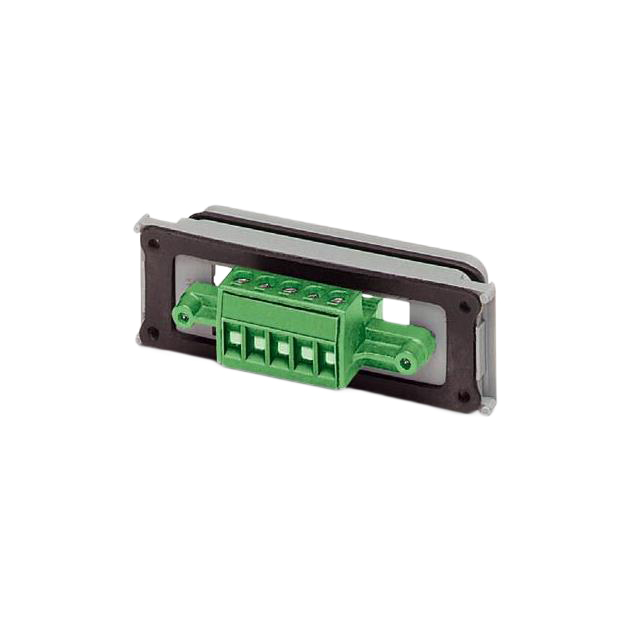

Phoenix Contact 1652253
Image shown is a representation only
Manufacturer
Manufacturer No
1652253
Packaging
Bulk
Description
TERM BLOCK HDR 5POS
Detailed Description
5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) Panel Mount
DataSheet
Type
Header, Male Pins, Shrouded (4 Side)
Series
DEVICENET
Features
Mounting Flange
Packaging
Bulk
Part Status
Active
Manufacturer
Phoenix Contact
Current - IEC
8A
Mounting Type
Panel Mount
Voltage - IEC
250 V
Contact Material
Copper Alloy
Housing Material
Polybutylene Terephthalate (PBT)
Number of Levels
1
Insulation Height
0.945" (24.00mm)
Termination Style
Screw - Rising Cage Clamp
Ingress Protection
IP67 - Dust Tight, Waterproof
Number of Positions
5
Positions Per Level
5
Contact Mating Finish
Gold
Operating Temperature
-40°C ~ 80°C
Wire Gauge or Range - mm²
0.2-2.5mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | DEVICENET |
| Features | Mounting Flange |
| Packaging | Bulk |
| Part Status | Active |
| Manufacturer | Phoenix Contact |
| Current - IEC | 8A |
| Mounting Type | Panel Mount |
| Voltage - IEC | 250 V |
| Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Number of Levels | 1 |
| Insulation Height | 0.945" (24.00mm) |
| Termination Style | Screw - Rising Cage Clamp |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 5 |
| Positions Per Level | 5 |
| Contact Mating Finish | Gold |
| Operating Temperature | -40°C ~ 80°C |
| Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Material Flammability Rating | UL94 V-0 |
