Step1: Product

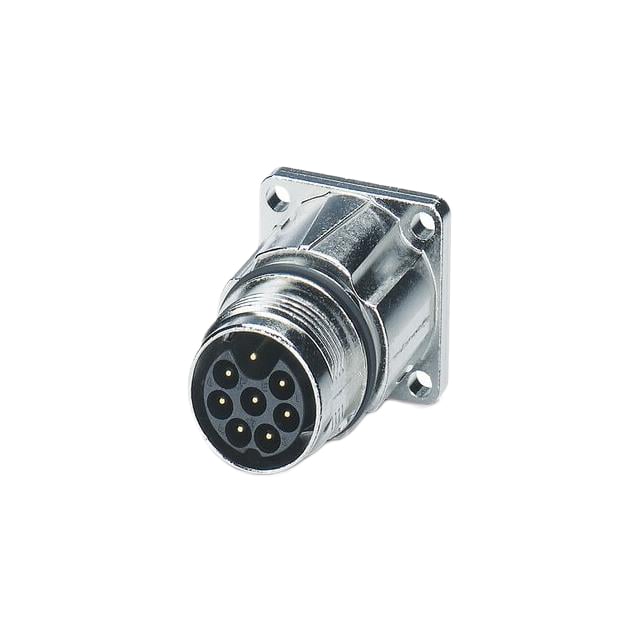

Phoenix Contact 1613570
Image shown is a representation only
Manufacturer
Manufacturer No
1613570
Quantity
5
Availability
In Stock
Packaging
Bulk
Description
CONN RCPT HSNG MALE 7POS PNL MT
Detailed Description
7 (6 + PE) Position Circular Connector Receptacle Housing Panel Mount
DataSheet
Note
Contacts Sold Separately
Type
For Male Pins
Series
ST
Packaging
Bulk
Shielding
Shielded
Orientation
N (Normal)
Part Status
Active
Contact Size
1.0mm
Contact Type
Crimp
Manufacturer
Phoenix Contact
Contact Shape
Circular
Housing Color
Silver
Mounting Type
Panel Mount
Connector Type
Receptacle Housing
Fastening Type
Push-Twist
Shell Material
Gadolinium-Zinc
Insert Material
Polyamide (PA66), Nylon 6/6
Mounting Feature
Flange
Ingress Protection
IP67 - Dust Tight, Waterproof
Number of Positions
7 (6 + PE)
Shell Size - Insert
M17-7
Operating Temperature
-40°C ~ 125°C
| Attribute | Value |
|---|---|
| Note | Contacts Sold Separately |
| Type | For Male Pins |
| Series | ST |
| Packaging | Bulk |
| Shielding | Shielded |
| Orientation | N (Normal) |
| Part Status | Active |
| Contact Size | 1.0mm |
| Contact Type | Crimp |
| Manufacturer | Phoenix Contact |
| Contact Shape | Circular |
| Housing Color | Silver |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle Housing |
| Fastening Type | Push-Twist |
| Shell Material | Gadolinium-Zinc |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Feature | Flange |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 7 (6 + PE) |
| Shell Size - Insert | M17-7 |
| Operating Temperature | -40°C ~ 125°C |
