Step1: Product

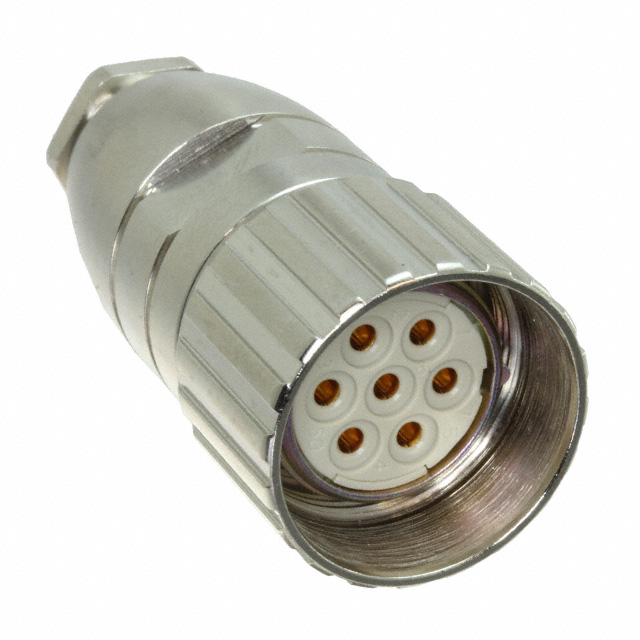

Phoenix Contact 1594566
Image shown is a representation only
Manufacturer
Manufacturer No
1594566
Packaging
Bulk
Description
CONN PLUG FMALE 7POS SOLDER CUP
Detailed Description
7 (Power) Position Circular Connector Plug, Female Sockets Solder Cup
DataSheet
Mfr
Phoenix Contact
Color
Silver
Series
RC
Features
Backshell, Coupling Nut
Packaging
Bulk
Shielding
Unshielded
Orientation
N (Normal)
Part Status
Active
Termination
Solder Cup
Cable Opening
0.236" ~ 0.394" (6.00mm ~ 10.00mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Female Sockets
Fastening Type
Threaded
Shell Material
Metal
Primary Material
Metal
Ingress Protection
IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Number of Positions
7 (Power)
Shell Size - Insert
M23-7
| Attribute | Value |
|---|---|
| Mfr | Phoenix Contact |
| Color | Silver |
| Series | RC |
| Features | Backshell, Coupling Nut |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Part Status | Active |
| Termination | Solder Cup |
| Cable Opening | 0.236" ~ 0.394" (6.00mm ~ 10.00mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Metal |
| Primary Material | Metal |
| Ingress Protection | IP65/IP67 - Dust Tight, Water Resistant, Waterproof |
| Number of Positions | 7 (Power) |
| Shell Size - Insert | M23-7 |
