Step1: Product

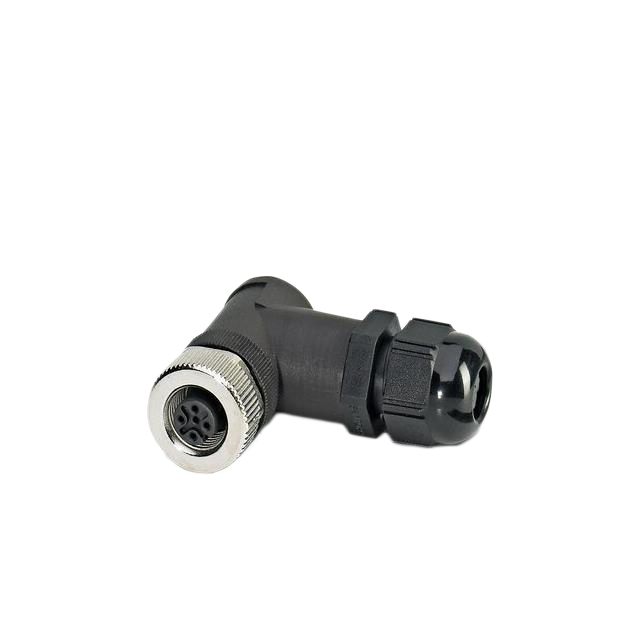

Phoenix Contact 1556812
Image shown is a representation only
Manufacturer
Manufacturer No
1556812
Packaging
Bulk
Description
CONN RCPT FMALE 5P SCREW
Detailed Description
5 Position Circular Connector Receptacle, Female Sockets Screw
DataSheet
Mfr
Phoenix Contact
Color
Black, Silver
Series
SKINTOP®
Features
Backshell, Coupling Nut
Packaging
Bulk
Orientation
A
Part Status
Active
Termination
Screw
Shell Finish
Nickel
Cable Opening
0.236" ~ 0.315" (6.00mm ~ 8.00mm)
Mounting Type
Free Hanging (In-Line), Right Angle
Connector Type
Receptacle, Female Sockets
Fastening Type
Threaded
Shell Material
Zinc Die Cast
Voltage Rating
48VAC, 60VDC
Insert Material
Polyamide (PA), Nylon
Contact Material
Copper Zinc
Primary Material
Metal
Ingress Protection
IP67 - Dust Tight, Waterproof
Number of Positions
5
Shell Size - Insert
M12-5
Current Rating (Amps)
4A
Operating Temperature
-20°C ~ 80°C
Contact Finish - Mating
Copper Alloy
Backshell Material, Plating
Polybutylene Terephthalate (PBT)
Material Flammability Rating
UL94 HB
| Attribute | Value |
|---|---|
| Mfr | Phoenix Contact |
| Color | Black, Silver |
| Series | SKINTOP® |
| Features | Backshell, Coupling Nut |
| Packaging | Bulk |
| Orientation | A |
| Part Status | Active |
| Termination | Screw |
| Shell Finish | Nickel |
| Cable Opening | 0.236" ~ 0.315" (6.00mm ~ 8.00mm) |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Zinc Die Cast |
| Voltage Rating | 48VAC, 60VDC |
| Insert Material | Polyamide (PA), Nylon |
| Contact Material | Copper Zinc |
| Primary Material | Metal |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 5 |
| Shell Size - Insert | M12-5 |
| Current Rating (Amps) | 4A |
| Operating Temperature | -20°C ~ 80°C |
| Contact Finish - Mating | Copper Alloy |
| Backshell Material, Plating | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 HB |
