Step1: Product

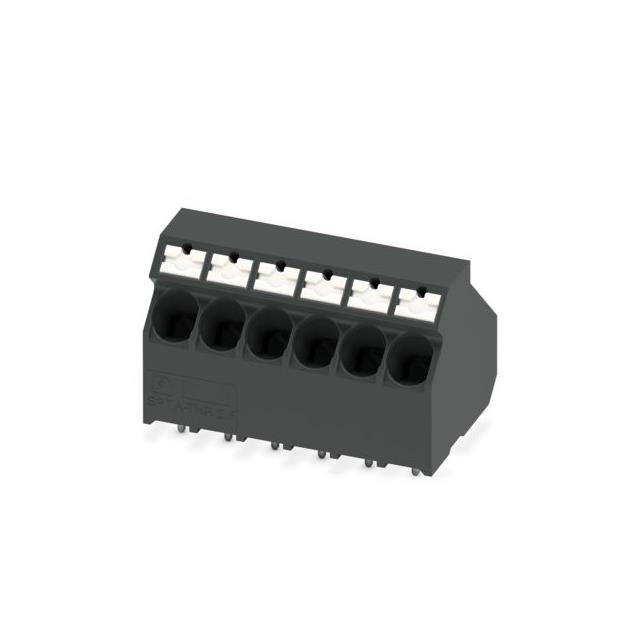

Phoenix Contact 1366245
Image shown is a representation only
Manufacturer
Manufacturer No
1366245
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
PCB TERMINAL BLOCK
Detailed Description
6 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole
DataSheet
Color
Black
Pitch
0.197" (5.00mm)
Series
COMBICON SPTA
Current
32 A
Voltage
400 V
Features
Push Button Actuated
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Wire Gauge
12-24 AWG
Part Status
Active
Manufacturer
Phoenix Contact
Mounting Type
Through Hole
Housing Material
Liquid Crystal Polymer (LCP)
Number of Levels
1
Wire Termination
Screwless - Leg Spring, Push-In Spring
Mating Orientation
45° (135°) Angle with Board
Positions Per Level
6
Operating Temperature
-40°C ~ 105°C
Contact Material - Plating
Copper Alloy - Tin Plated
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.197" (5.00mm) |
| Series | COMBICON SPTA |
| Current | 32 A |
| Voltage | 400 V |
| Features | Push Button Actuated |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Wire Gauge | 12-24 AWG |
| Part Status | Active |
| Manufacturer | Phoenix Contact |
| Mounting Type | Through Hole |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Number of Levels | 1 |
| Wire Termination | Screwless - Leg Spring, Push-In Spring |
| Mating Orientation | 45° (135°) Angle with Board |
| Positions Per Level | 6 |
| Operating Temperature | -40°C ~ 105°C |
| Contact Material - Plating | Copper Alloy - Tin Plated |
