Step1: Product

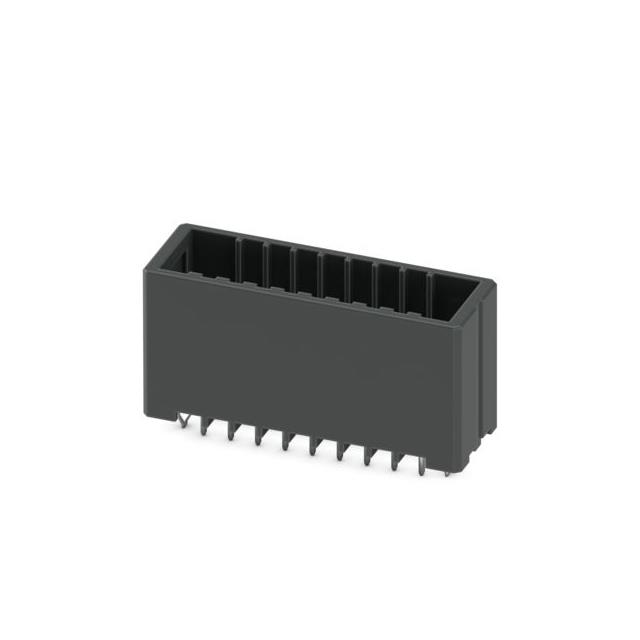

Phoenix Contact 1340627
Image shown is a representation only
Manufacturer
Manufacturer No
1340627
Packaging
Bulk
Description
CONN HEADER VERT 18POS 3.81MM
Detailed Description
Connector Header Through Hole 18 position 0.150" (3.81mm)
Datasheet
Mfr
Phoenix Contact
Style
Board to Cable/Wire
Series
CONNEXIS
Features
Board Lock
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Termination
Solder
Contact Type
Tab
Contact Shape
Rectangular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.150" (3.81mm)
Voltage Rating
160V
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.850" (21.59mm)
Insulation Material
Polybutylene Terephthalate (PBT)
Number of Positions
18
Row Spacing - Mating
0.200" (5.08mm)
Contact Finish - Post
Tin
Contact Length - Post
0.150" (3.81mm)
Current Rating (Amps)
8A
Operating Temperature
-55°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
12.0µin (0.30µm)
Contact Finish Thickness - Mating
118.1µin (3.00µm)
| Attribute | Value |
|---|---|
| Mfr | Phoenix Contact |
| Style | Board to Cable/Wire |
| Series | CONNEXIS |
| Features | Board Lock |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact Type | Tab |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.150" (3.81mm) |
| Voltage Rating | 160V |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.850" (21.59mm) |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 18 |
| Row Spacing - Mating | 0.200" (5.08mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.150" (3.81mm) |
| Current Rating (Amps) | 8A |
| Operating Temperature | -55°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 12.0µin (0.30µm) |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
