Step1: Product

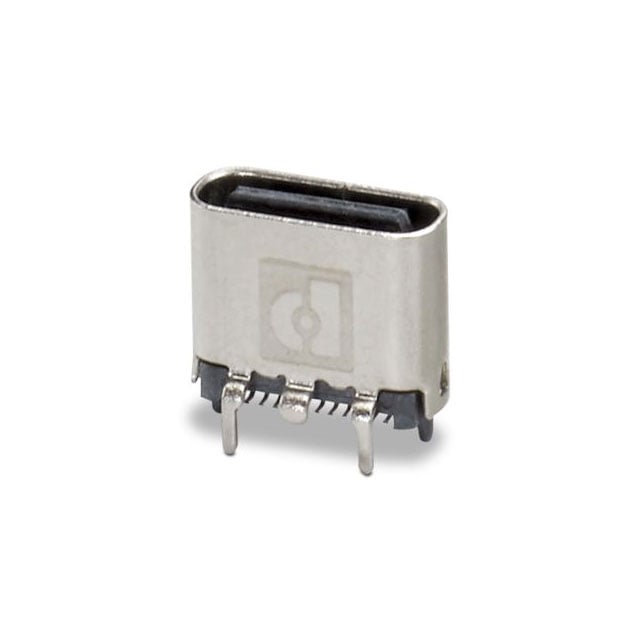

Phoenix Contact 1332646
Image shown is a representation only
Manufacturer
Manufacturer No
1332646
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CUC-USB3.1-J1ST-S/UCF-SMD
Detailed Description
USB-C (USB TYPE-C) Receptacle Connector 24 Position Surface Mount
DataSheet
Gender
Receptacle
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Shielded
Part Status
Active
Termination
Solder
Manufacturer
Phoenix Contact
Mating Cycles
10000
Mounting Type
Surface Mount
Connector Type
USB-C (USB TYPE-C)
Contact Finish
Gold
Number of Ports
1
Voltage - Rated
20V
Insulation Color
Black
Mounting Feature
Vertical
Ingress Protection
IP20
Number of Contacts
24
Current Rating (Amps)
5A
Operating Temperature
-55°C ~ 85°C
Shell/Shielding Material
Brass
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Gender | Receptacle |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Shielded |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Phoenix Contact |
| Mating Cycles | 10000 |
| Mounting Type | Surface Mount |
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Number of Ports | 1 |
| Voltage - Rated | 20V |
| Insulation Color | Black |
| Mounting Feature | Vertical |
| Ingress Protection | IP20 |
| Number of Contacts | 24 |
| Current Rating (Amps) | 5A |
| Operating Temperature | -55°C ~ 85°C |
| Shell/Shielding Material | Brass |
| Material Flammability Rating | UL94 V-0 |
