Step1: Product

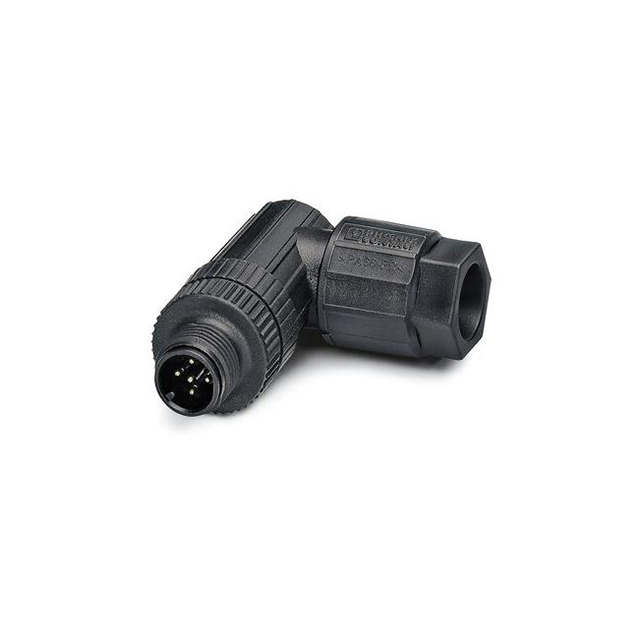

Phoenix Contact 1072544
Image shown is a representation only
Manufacturer
Manufacturer No
1072544
Packaging
Bulk
Description
SACC-M12MR-5PL DN
Detailed Description
5 Position Circular Connector Plug, Male Pins Spring-Cage
DataSheet
Mfr
Phoenix Contact
Color
Black
Series
CANopen®/DeviceNet™
Features
Backshell
Packaging
Bulk
Shielding
Shielded
Orientation
A
Part Status
Active
Termination
Spring-Cage
Cable Opening
0.157" ~ 0.315" (4.00mm ~ 8.00mm)
Mounting Type
Free Hanging (In-Line), Right Angle
Connector Type
Plug, Male Pins
Fastening Type
Threaded
Shell Material
Plastic
Voltage Rating
48VAC, 60VDC
Insert Material
Polyamide (PA66), Nylon 6/6
Contact Material
Copper Alloy
Primary Material
Metal
Ingress Protection
IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Number of Positions
5
Shell Size - Insert
M12-5
Current Rating (Amps)
4A
Operating Temperature
-40°C ~ 85°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Polyamide (PA66), Nylon 6/6
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Phoenix Contact |
| Color | Black |
| Series | CANopen®/DeviceNet™ |
| Features | Backshell |
| Packaging | Bulk |
| Shielding | Shielded |
| Orientation | A |
| Part Status | Active |
| Termination | Spring-Cage |
| Cable Opening | 0.157" ~ 0.315" (4.00mm ~ 8.00mm) |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Connector Type | Plug, Male Pins |
| Fastening Type | Threaded |
| Shell Material | Plastic |
| Voltage Rating | 48VAC, 60VDC |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material | Copper Alloy |
| Primary Material | Metal |
| Ingress Protection | IP65/IP67 - Dust Tight, Water Resistant, Waterproof |
| Number of Positions | 5 |
| Shell Size - Insert | M12-5 |
| Current Rating (Amps) | 4A |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
