Step1: Product

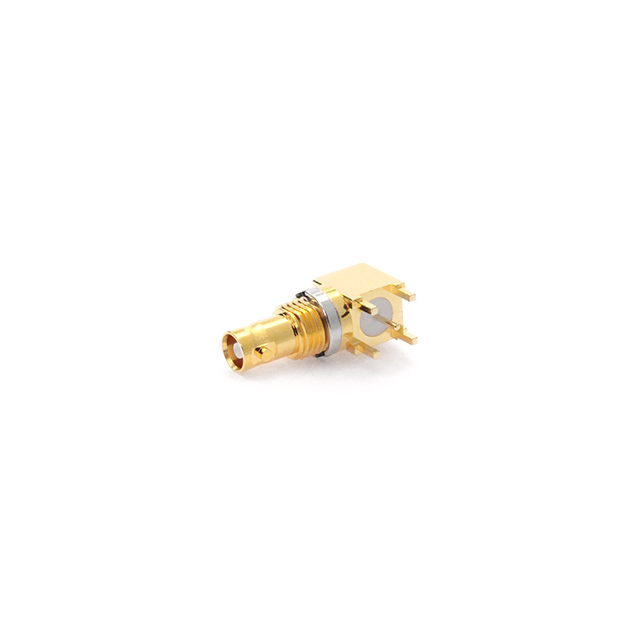

PEI-Genesis IPRF-UB-J03P0G23-R0
Image shown is a representation only
Manufacturer
Manufacturer No
IPRF-UB-J03P0G23-R0
Packaging
Box
Description
ULTRA TINY BNC R/A BH JACK
Detailed Description
BNC Connector Jack, Female Socket 75 Ohms Panel Mount Solder
DataSheet
Mfr
PEI-Genesis
Series
Sure-Seal®
Impedance
75 Ohms
Packaging
Box
Body Finish
Gold
Part Status
Active
Body Material
Brass
Housing Color
Gold
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Bayonet Lock
Voltage Rating
500 V
Connector Style
BNC
Frequency - Max
12 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Front Side Nut
Ingress Protection
IP68 - Dust Tight, Waterproof
Shield Termination
Solder
Base Product Number
IPRF
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | PEI-Genesis |
| Series | Sure-Seal® |
| Impedance | 75 Ohms |
| Packaging | Box |
| Body Finish | Gold |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Gold |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Bayonet Lock |
| Voltage Rating | 500 V |
| Connector Style | BNC |
| Frequency - Max | 12 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Shield Termination | Solder |
| Base Product Number | IPRF |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
