Step1: Product

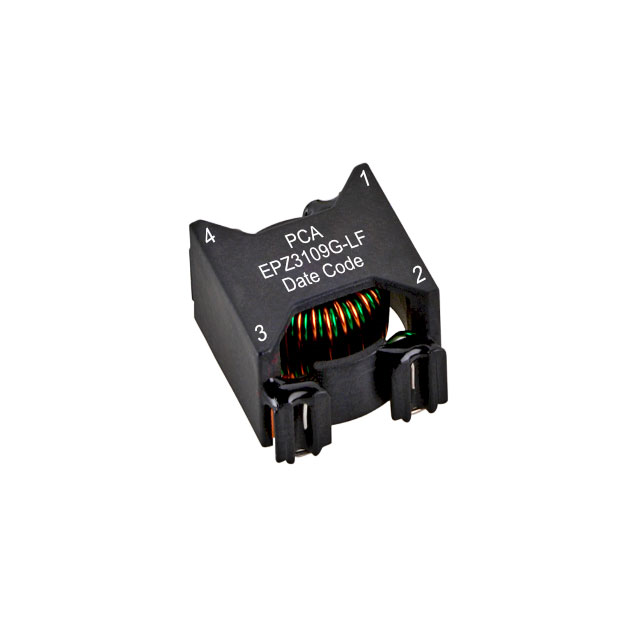

PCA Electronics, Inc. EPZ3109G-LF
Image shown is a representation only
Manufacturer
Manufacturer No
EPZ3109G-LF
Packaging
Tray
Description
CMC 2.5A 2LN 10 KOHM SMD
Detailed Description
2 Line Common Mode Choke Surface Mount 10 kOhms @ 1 MHz 2.5A DCR 60mOhm
DataSheet
Series
EPZ-3109
Packaging
Tray
Filter Type
Power Line
Part Status
Active
Height (Max)
0.350" (8.90mm)
Manufacturer
PCA Electronics, Inc.
Mounting Type
Surface Mount
Number of Lines
2
Size / Dimension
0.560" L x 0.520" W (14.22mm x 13.21mm)
Current Rating (Max)
2.5A
Impedance @ Frequency
10 kOhms @ 1 MHz
Operating Temperature
-40°C ~ 85°C
DC Resistance (DCR) (Max)
60mOhm
| Attribute | Value |
|---|---|
| Series | EPZ-3109 |
| Packaging | Tray |
| Filter Type | Power Line |
| Part Status | Active |
| Height (Max) | 0.350" (8.90mm) |
| Manufacturer | PCA Electronics, Inc. |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Size / Dimension | 0.560" L x 0.520" W (14.22mm x 13.21mm) |
| Current Rating (Max) | 2.5A |
| Impedance @ Frequency | 10 kOhms @ 1 MHz |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) (Max) | 60mOhm |
