Step1: Product

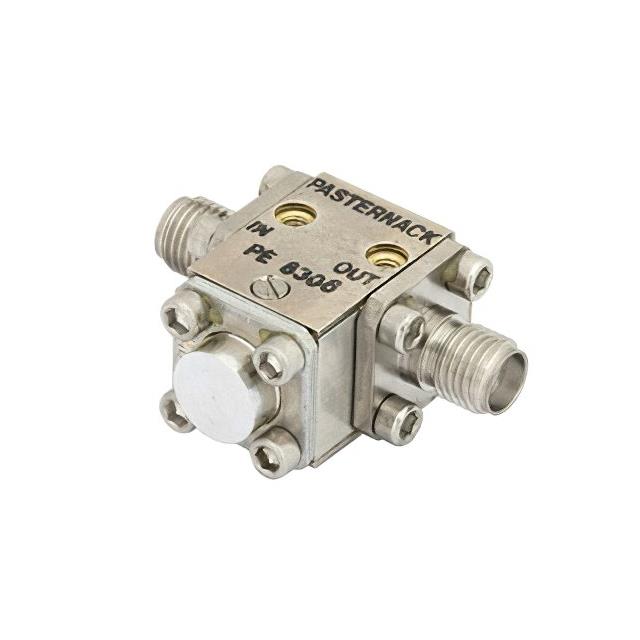

Pasternack PE8306
Image shown is a representation only
Manufacturer
Manufacturer No
PE8306
Package
Module, SMA Connectors
Packaging
Retail Package
Description
Isolator With 17 dB Isolation Fr
Detailed Description
18 GHz ~ 26.5 GHz SMA-FEMALE Isolator 1 W 17dB (Min) 1.4 Module, SMA Connectors
DataSheet
Type
Isolator
VSWR
1.4
Frequency
18 GHz ~ 26.5 GHz
Isolation
17dB (Min)
Packaging
Retail Package
Part Status
Active
Manufacturer
Pasternack
Connector Type
SMA-FEMALE
Insertion Loss
0.6dB (Max)
Package / Case
Module, SMA Connectors
Power - Average Forward
1 W
| Attribute | Value |
|---|---|
| Type | Isolator |
| VSWR | 1.4 |
| Frequency | 18 GHz ~ 26.5 GHz |
| Isolation | 17dB (Min) |
| Packaging | Retail Package |
| Part Status | Active |
| Manufacturer | Pasternack |
| Connector Type | SMA-FEMALE |
| Insertion Loss | 0.6dB (Max) |
| Package / Case | Module, SMA Connectors |
| Power - Average Forward | 1 W |
