Step1: Product
Panduit Corp PNF10-8LF-2K

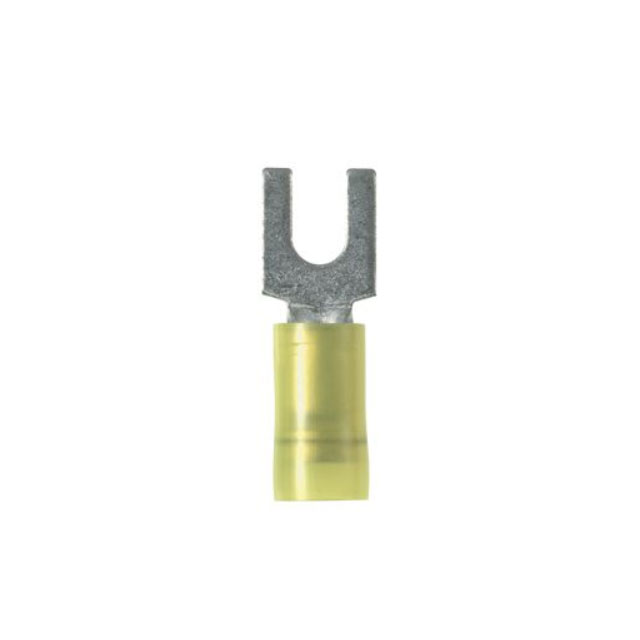

Image shown is a representation only
Manufacturer
Manufacturer No
PNF10-8LF-2K
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN SPADE TERM 10-12AWG #8 YEL
Detailed Description
Yellow 8 Stud Spade Terminal Connector Crimp 10-12 AWG
DataSheet
Color
Yellow
Series
Pan-Term®, ReelSmart™
Features
Serrated Termination
Packaging
Tape & Reel (TR); Cut Tape (CT)
Insulation
Insulated
Wire Gauge
10-12 AWG
Part Status
Active
Termination
Crimp
Manufacturer
Panduit Corp
Mounting Type
Free Hanging (In-Line)
Stud/Tab Size
8 Stud
Terminal Type
Spring, Snap
Contact Finish
Tin
Contact Material
Copper
Length - Overall
1.050" (26.67mm)
Base Product Number
PNF10
Insulation Diameter
0.135" ~ 0.225" (3.43mm ~ 5.72mm)
Width - Outer Edges
0.300" (7.62mm)
Material - Insulation
Polyamide (PA), Nylon
Tongue Inside Opening
0.160" (4.06mm)
| Attribute | Value |
|---|---|
| Color | Yellow |
| Series | Pan-Term®, ReelSmart™ |
| Features | Serrated Termination |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Insulation | Insulated |
| Wire Gauge | 10-12 AWG |
| Part Status | Active |
| Termination | Crimp |
| Manufacturer | Panduit Corp |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud |
| Terminal Type | Spring, Snap |
| Contact Finish | Tin |
| Contact Material | Copper |
| Length - Overall | 1.050" (26.67mm) |
| Base Product Number | PNF10 |
| Insulation Diameter | 0.135" ~ 0.225" (3.43mm ~ 5.72mm) |
| Width - Outer Edges | 0.300" (7.62mm) |
| Material - Insulation | Polyamide (PA), Nylon |
| Tongue Inside Opening | 0.160" (4.06mm) |
