Step1: Product

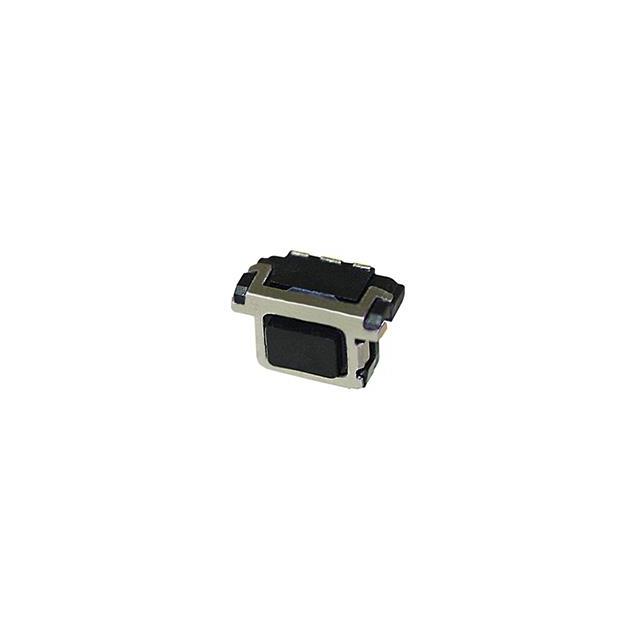

Panasonic Industry EVP-AECB2A
Image shown is a representation only
Manufacturer
Manufacturer No
EVP-AECB2A
Packaging
Tape & Reel (TR)
Description
SWITCH TACTILE SPST-NO 0.02A 15V
Detailed Description
Tactile Switch SPST-NO Side Actuated Edge Mount, Right Angle
Datasheet
Mfr
Panasonic Industry
Series
EVPAE
Circuit
SPST-NO
Outline
4.80mm x 2.20mm
Packaging
Tape & Reel (TR)
Illumination
Non-Illuminated
Actuator Type
Rectangular Button
Mounting Type
Edge Mount, Right Angle
Switch Travel
0.15mm
Mechanical Life
200,000 Cycles
Operating Force
245gf
Switch Function
Off-Mom
Termination Style
SMD (SMT) Tab
Base Product Number
EVP-AE
Actuator Orientation
Side Actuated
Operating Temperature
-40°C ~ 85°C
Contact Rating @ Voltage
0.02A @ 15VDC
Actuator Length, Right Angle
1.70mm
| Attribute | Value |
|---|---|
| Mfr | Panasonic Industry |
| Series | EVPAE |
| Circuit | SPST-NO |
| Outline | 4.80mm x 2.20mm |
| Packaging | Tape & Reel (TR) |
| Illumination | Non-Illuminated |
| Actuator Type | Rectangular Button |
| Mounting Type | Edge Mount, Right Angle |
| Switch Travel | 0.15mm |
| Mechanical Life | 200,000 Cycles |
| Operating Force | 245gf |
| Switch Function | Off-Mom |
| Termination Style | SMD (SMT) Tab |
| Base Product Number | EVP-AE |
| Actuator Orientation | Side Actuated |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating @ Voltage | 0.02A @ 15VDC |
| Actuator Length, Right Angle | 1.70mm |
