Step1: Product

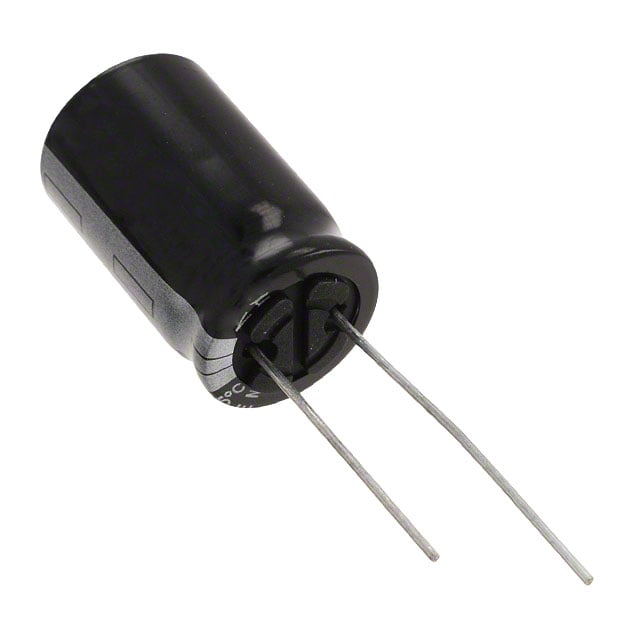

Panasonic Industry ECA-0JHG103
Image shown is a representation only
Manufacturer
Manufacturer No
ECA-0JHG103
Package
Radial, Can
Packaging
Bulk
Description
CAP ALUM 10000UF 20% 6.3V RADIAL
Detailed Description
10000 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
DataSheet
Mfr
Panasonic Industry
Series
NHG-A
Packaging
Bulk
Tolerance
±20%
Capacitance
10000 µF
Part Status
Active
Applications
General Purpose
Lead Spacing
0.295" (7.50mm)
Polarization
Polar
Mounting Type
Through Hole
Package / Case
Radial, Can
Voltage - Rated
6.3 V
Lifetime @ Temp.
2000 Hrs @ 105°C
Size / Dimension
0.630" Dia (16.00mm)
Base Product Number
ECA-0JH
Height - Seated (Max)
1.063" (27.00mm)
Operating Temperature
-55°C ~ 105°C
Ripple Current @ Low Frequency
1.65 A @ 120 Hz
Ripple Current @ High Frequency
1.898 A @ 100 kHz
| Attribute | Value |
|---|---|
| Mfr | Panasonic Industry |
| Series | NHG-A |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 10000 µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.295" (7.50mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 6.3 V |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Base Product Number | ECA-0JH |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Operating Temperature | -55°C ~ 105°C |
| Ripple Current @ Low Frequency | 1.65 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.898 A @ 100 kHz |
