Step1: Product

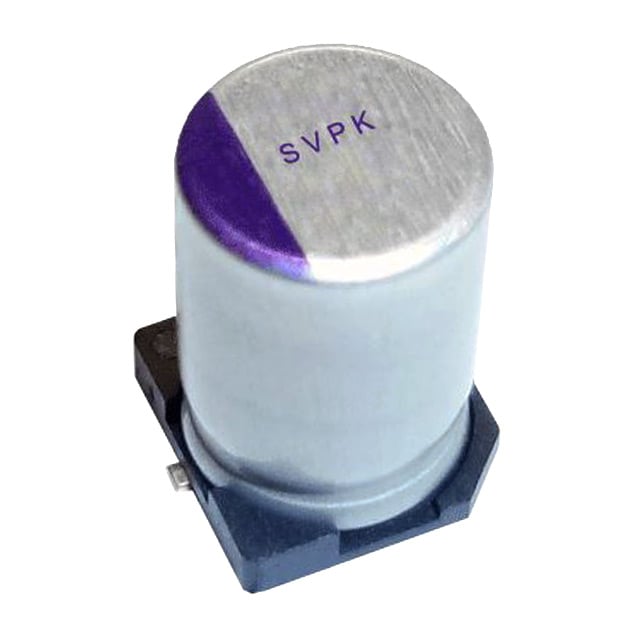

Panasonic Industry 16SVPK220M
Image shown is a representation only
Manufacturer
Manufacturer No
16SVPK220M
Quantity
7563
Availability
In Stock
Package
Radial, Can - SMD
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CAP ALUM POLY 220UF 20% 16V SMD
Detailed Description
220 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 22mOhm 1000 Hrs @ 125°C
DataSheet
Type
Polymer
Series
OS-CON™, SVPK
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Tolerance
±20%
Capacitance
220 µF
Part Status
Active
Applications
General Purpose
Manufacturer
Panasonic Industry
Mounting Type
Surface Mount
Package / Case
Radial, Can - SMD
Voltage - Rated
16 V
Lifetime @ Temp.
1000 Hrs @ 125°C
Size / Dimension
0.248" Dia (6.30mm)
Base Product Number
16SVPK
Height - Seated (Max)
0.236" (6.00mm)
Operating Temperature
-55°C ~ 125°C
Surface Mount Land Size
0.260" L x 0.260" W (6.60mm x 6.60mm)
Ripple Current @ Low Frequency
52 mA @ 120 Hz
Ripple Current @ High Frequency
1.04 A @ 100 kHz
ESR (Equivalent Series Resistance)
22mOhm
| Attribute | Value |
|---|---|
| Type | Polymer |
| Series | OS-CON™, SVPK |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Tolerance | ±20% |
| Capacitance | 220 µF |
| Part Status | Active |
| Applications | General Purpose |
| Manufacturer | Panasonic Industry |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 16 V |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Base Product Number | 16SVPK |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Operating Temperature | -55°C ~ 125°C |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Ripple Current @ Low Frequency | 52 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.04 A @ 100 kHz |
| ESR (Equivalent Series Resistance) | 22mOhm |
