Step1: Product

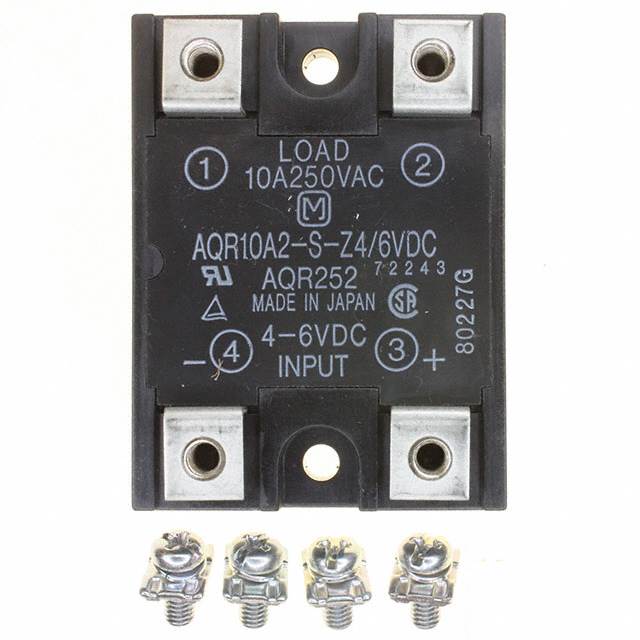

Panasonic Electric Works AQR10A2-S-Z4/6VDC
Image shown is a representation only
Manufacturer
Manufacturer No
AQR10A2-S-Z4/6VDC
Package
Hockey Puck
Packaging
Bulk
Description
SSR RELAY SPST-NO 10A 75-250V
Detailed Description
Solid State Photo-Coupled Relay (Photorelay) SPST-NO (1 Form A) Hockey Puck
DataSheet
Mfr
Panasonic Electric Works
Series
AQ-R
Circuit
SPST-NO (1 Form A)
Packaging
Bulk
Relay Type
Photo-Coupled Relay (Photorelay)
Output Type
AC, Zero Cross
Part Status
Active
Load Current
10 A
Mounting Type
Chassis Mount
Package / Case
Hockey Puck
Voltage - Load
75 V ~ 250 V
Approval Agency
CSA, cURus, TUV, UR
Voltage - Input
4 ~ 6VDC
Termination Style
Screw Terminal
Base Product Number
AQR10A
Operating Temperature
-20°C ~ 80°C
| Attribute | Value |
|---|---|
| Mfr | Panasonic Electric Works |
| Series | AQ-R |
| Circuit | SPST-NO (1 Form A) |
| Packaging | Bulk |
| Relay Type | Photo-Coupled Relay (Photorelay) |
| Output Type | AC, Zero Cross |
| Part Status | Active |
| Load Current | 10 A |
| Mounting Type | Chassis Mount |
| Package / Case | Hockey Puck |
| Voltage - Load | 75 V ~ 250 V |
| Approval Agency | CSA, cURus, TUV, UR |
| Voltage - Input | 4 ~ 6VDC |
| Termination Style | Screw Terminal |
| Base Product Number | AQR10A |
| Operating Temperature | -20°C ~ 80°C |
