Step1: Product
Panasonic Electric Works APT1231WAY

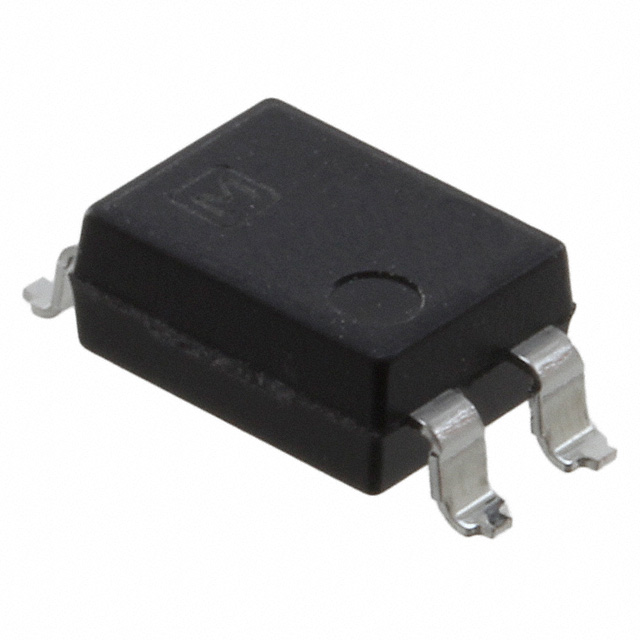

Image shown is a representation only
Manufacturer
Manufacturer No
APT1231WAY
Package
4-SMD, Gull Wing
Packaging
Tape & Reel (TR)
Description
OPTOISO 5KV TRIAC 1CH 4DIP GW
Detailed Description
Optoisolator Triac Output 5000Vrms 1 Channel 4-DIP Gull Wing
Datasheet
Series
APT
Packaging
Tape & Reel (TR)
Output Type
Triac
Manufacturer
Panasonic Electric Works
Turn On Time
100µs (Max)
Mounting Type
Surface Mount
Package / Case
4-SMD, Gull Wing
Approval Agency
cUR, VDE
Number of Channels
1
Static dV/dt (Min)
500V/µs
Base Product Number
APT1231
Current - Hold (Ih)
3.5mA
Voltage - Isolation
5000Vrms
Voltage - Off State
600 V
Operating Temperature
-40°C ~ 100°C
Zero Crossing Circuit
Yes
Supplier Device Package
4-DIP Gull Wing
Voltage - Forward (Vf) (Typ)
1.21V
Current - DC Forward (If) (Max)
50 mA
Current - LED Trigger (Ift) (Max)
10mA
Current - On State (It (RMS)) (Max)
50 mA
| Attribute | Value |
|---|---|
| Series | APT |
| Packaging | Tape & Reel (TR) |
| Output Type | Triac |
| Manufacturer | Panasonic Electric Works |
| Turn On Time | 100µs (Max) |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Approval Agency | cUR, VDE |
| Number of Channels | 1 |
| Static dV/dt (Min) | 500V/µs |
| Base Product Number | APT1231 |
| Current - Hold (Ih) | 3.5mA |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 600 V |
| Operating Temperature | -40°C ~ 100°C |
| Zero Crossing Circuit | Yes |
| Supplier Device Package | 4-DIP Gull Wing |
| Voltage - Forward (Vf) (Typ) | 1.21V |
| Current - DC Forward (If) (Max) | 50 mA |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - On State (It (RMS)) (Max) | 50 mA |
