Step1: Product

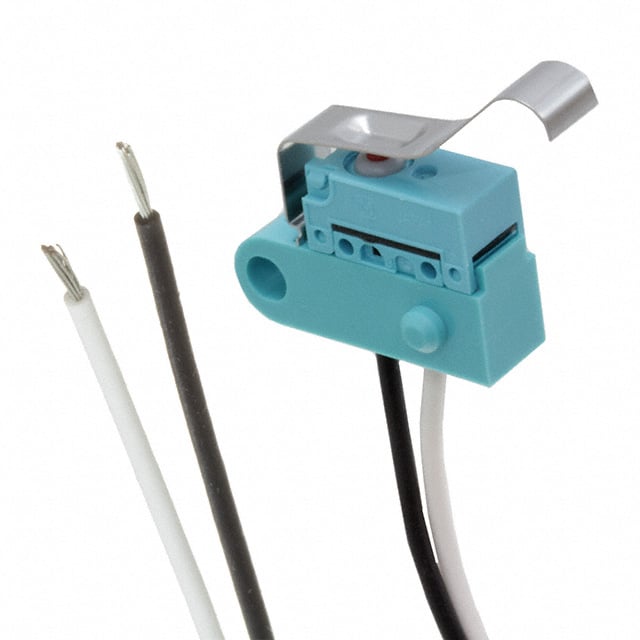

Panasonic Electric Works ABJ363861
Image shown is a representation only
Manufacturer
Manufacturer No
ABJ363861
Packaging
Bulk
Description
SWITCH SNP ACT SPST-NO 0.1A 125V
Detailed Description
Switch SPST-NO Chassis Mount
DataSheet
Series
ABJ
Circuit
SPST-NO
Packaging
Bulk
Pretravel
0.236" (6.0mm)
Overtravel
0.098" (2.5mm)
Part Status
Active
Manufacturer
Panasonic Electric Works
Actuator Type
Lever, Leaf
Mounting Type
Chassis Mount
Release Force
30gf
Electrical Life
100,000 Cycles
Mechanical Life
500,000 Cycles
Operating Force
130gf
Switch Function
Off-Mom
Termination Style
Wire Leads
Ingress Protection
IP67 - Dust Tight, Waterproof
Operating Position
0.630" (16.0mm)
Base Product Number
ABJ363
Differential Travel
0.040" (1.0mm)
Voltage Rating - AC
125 V
Voltage Rating - DC
30 V
Current Rating (Amps)
100mA (AC/DC)
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Series | ABJ |
| Circuit | SPST-NO |
| Packaging | Bulk |
| Pretravel | 0.236" (6.0mm) |
| Overtravel | 0.098" (2.5mm) |
| Part Status | Active |
| Manufacturer | Panasonic Electric Works |
| Actuator Type | Lever, Leaf |
| Mounting Type | Chassis Mount |
| Release Force | 30gf |
| Electrical Life | 100,000 Cycles |
| Mechanical Life | 500,000 Cycles |
| Operating Force | 130gf |
| Switch Function | Off-Mom |
| Termination Style | Wire Leads |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Position | 0.630" (16.0mm) |
| Base Product Number | ABJ363 |
| Differential Travel | 0.040" (1.0mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Current Rating (Amps) | 100mA (AC/DC) |
| Operating Temperature | -40°C ~ 85°C |
