Step1: Product
P1 Technologies 8R004198501F

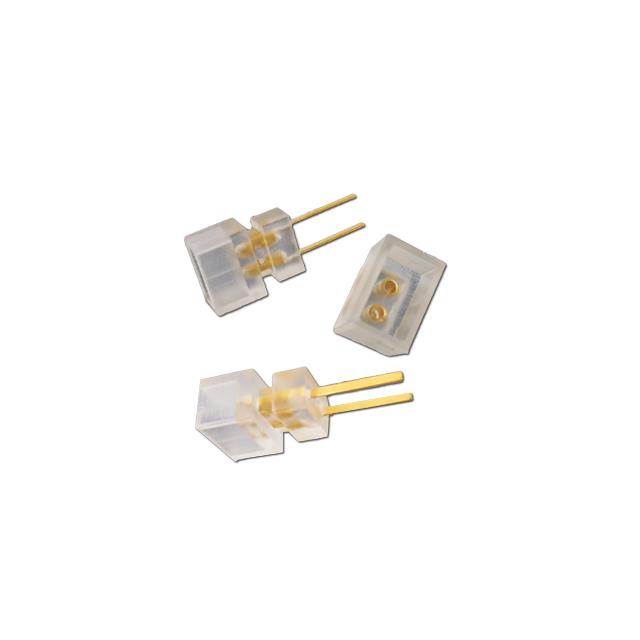

Image shown is a representation only
Manufacturer
Manufacturer No
8R004198501F
Packaging
Bulk
Description
CRYSTAL RECESSED MOTION IEM JACK
Detailed Description
2 Position Receptacle Connector 0.070" (1.78mm) Through Hole Gold
Datasheet
Mfr
P1 Technologies
Style
Board to Cable/Wire
Series
P1 Motion
Packaging
Bulk
Termination
Solder
Applications
General Purpose, Telecommunications
Contact Type
Female Socket
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Receptacle
Number of Rows
1
Pitch - Mating
0.070" (1.78mm)
Contact Material
Beryllium Copper
Number of Positions
2
Contact Length - Post
0.250" (6.35mm)
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Contact Finish Thickness - Post
60.0µin (1.52µm)
Contact Finish Thickness - Mating
60.0µin (1.52µm)
| Attribute | Value |
|---|---|
| Mfr | P1 Technologies |
| Style | Board to Cable/Wire |
| Series | P1 Motion |
| Packaging | Bulk |
| Termination | Solder |
| Applications | General Purpose, Telecommunications |
| Contact Type | Female Socket |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Receptacle |
| Number of Rows | 1 |
| Pitch - Mating | 0.070" (1.78mm) |
| Contact Material | Beryllium Copper |
| Number of Positions | 2 |
| Contact Length - Post | 0.250" (6.35mm) |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) |
| Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
