Step1: Product

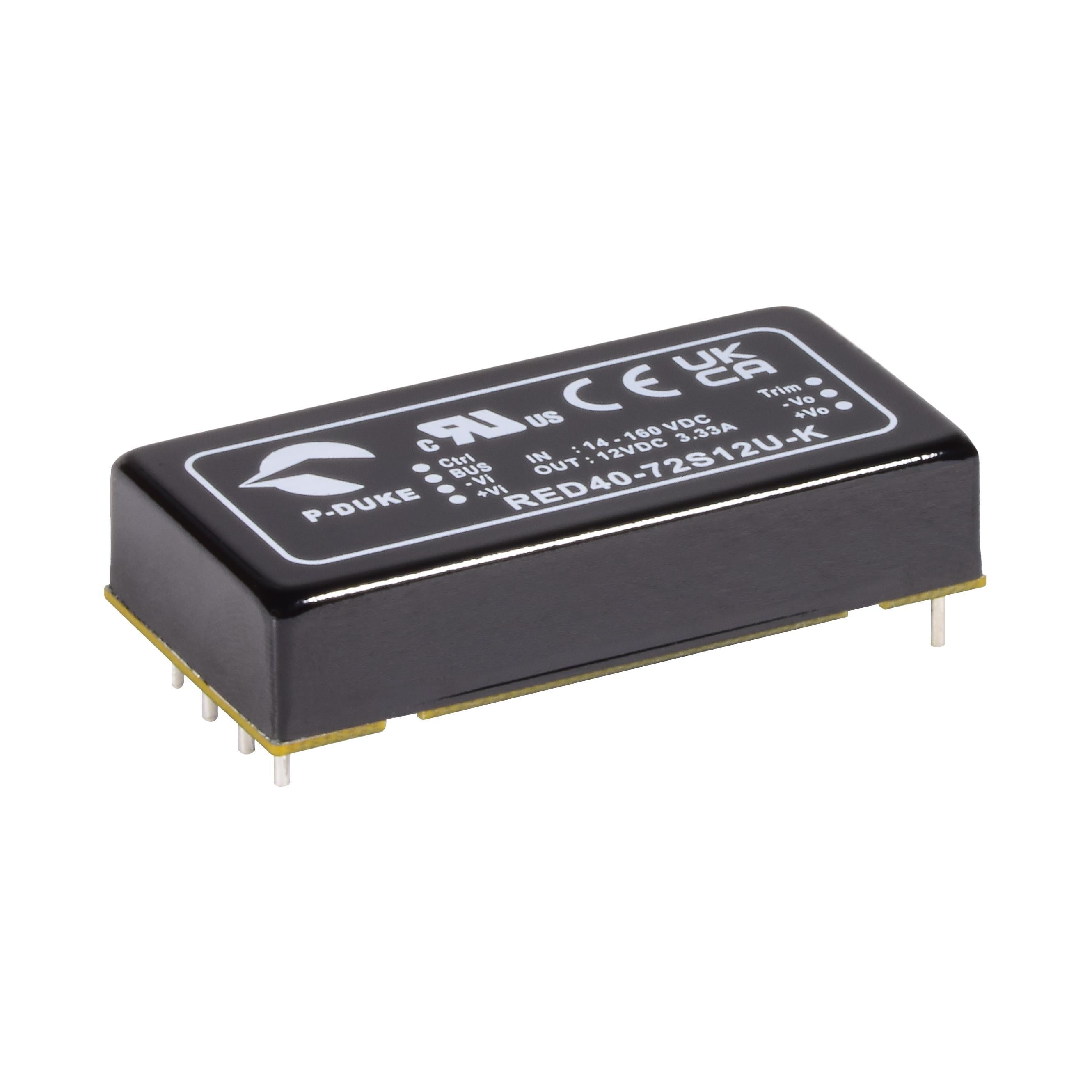

P-DUKE Technology RED40-72S12U-K
Image shown is a representation only
Manufacturer
Manufacturer No
RED40-72S12U-K
Package
7-DIP Module
Packaging
Tube
Description
ISOLATED / 40W/ VOUT:12
Detailed Description
Isolated Module DC DC Converter 1 Output 12V 3.33A 14V - 160V Input
DataSheet
Mfr
P-DUKE Technology
Type
Isolated Module
Series
RED40U (40W)
Features
Adjustable Output, Remote On/Off
Packaging
Tube
Efficiency
90%
Part Status
Active
Applications
ITE (Commercial), Railway
Mounting Type
Through Hole
Power (Watts)
40 W
Package / Case
7-DIP Module
Approval Agency
CE
Standard Number
62368-1
Control Features
Enable, Active High
Size / Dimension
2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Number of Outputs
1
Voltage - Output 1
12V
Voltage - Isolation
3 kV
Operating Temperature
-40°C ~ 105°C (With Derating)
Voltage - Input (Max)
160V
Voltage - Input (Min)
14V
Current - Output (Max)
3.33A
| Attribute | Value |
|---|---|
| Mfr | P-DUKE Technology |
| Type | Isolated Module |
| Series | RED40U (40W) |
| Features | Adjustable Output, Remote On/Off |
| Packaging | Tube |
| Efficiency | 90% |
| Part Status | Active |
| Applications | ITE (Commercial), Railway |
| Mounting Type | Through Hole |
| Power (Watts) | 40 W |
| Package / Case | 7-DIP Module |
| Approval Agency | CE |
| Standard Number | 62368-1 |
| Control Features | Enable, Active High |
| Size / Dimension | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 12V |
| Voltage - Isolation | 3 kV |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Voltage - Input (Max) | 160V |
| Voltage - Input (Min) | 14V |
| Current - Output (Max) | 3.33A |
