Step1: Product
P-DUKE Technology LCD15-24D15

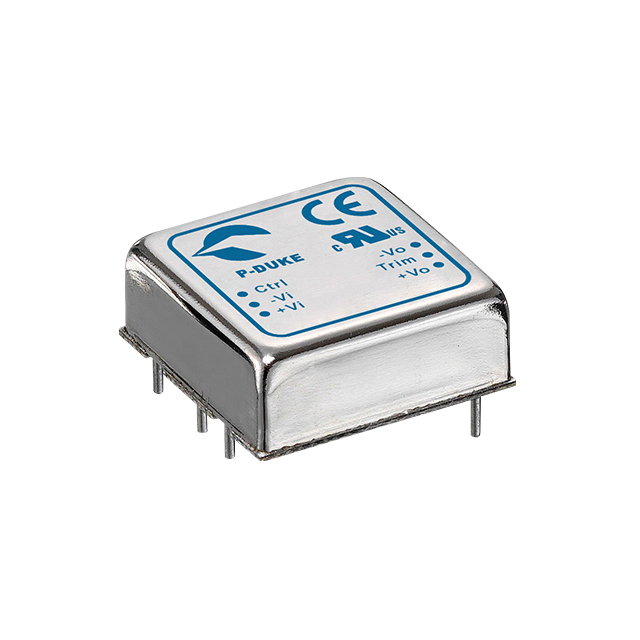

Image shown is a representation only
Manufacturer
Manufacturer No
LCD15-24D15
Package
6-DIP Module
Packaging
Tube
Description
DC DC CONVERTER +/-15V 15W
Detailed Description
Isolated Module DC DC Converter 2 Output 15V -15V 500mA, 500mA 18V - 36V Input
Datasheet
Mfr
P-DUKE Technology
Type
Isolated Module
Series
LCD15 (15W)
Features
Adjustable Output, Remote On/Off
Packaging
Tube
Efficiency
88%
Applications
ITE (Commercial)
Mounting Type
Through Hole
Power (Watts)
15 W
Package / Case
6-DIP Module
Approval Agency
CB, CE, cURus
Control Features
Enable, Active Low
Size / Dimension
1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Number of Outputs
2
Voltage - Output 1
15V
Voltage - Output 2
-15V
Base Product Number
LCD15
Voltage - Isolation
1.6 kV
Operating Temperature
-40°C ~ 105°C (With Derating)
Voltage - Input (Max)
36V
Voltage - Input (Min)
18V
Current - Output (Max)
500mA, 500mA
| Attribute | Value |
|---|---|
| Mfr | P-DUKE Technology |
| Type | Isolated Module |
| Series | LCD15 (15W) |
| Features | Adjustable Output, Remote On/Off |
| Packaging | Tube |
| Efficiency | 88% |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole |
| Power (Watts) | 15 W |
| Package / Case | 6-DIP Module |
| Approval Agency | CB, CE, cURus |
| Control Features | Enable, Active Low |
| Size / Dimension | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) |
| Number of Outputs | 2 |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Base Product Number | LCD15 |
| Voltage - Isolation | 1.6 kV |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Voltage - Input (Max) | 36V |
| Voltage - Input (Min) | 18V |
| Current - Output (Max) | 500mA, 500mA |
