Step1: Product
Oupiin 9302-2A1S24P11ACB30DA

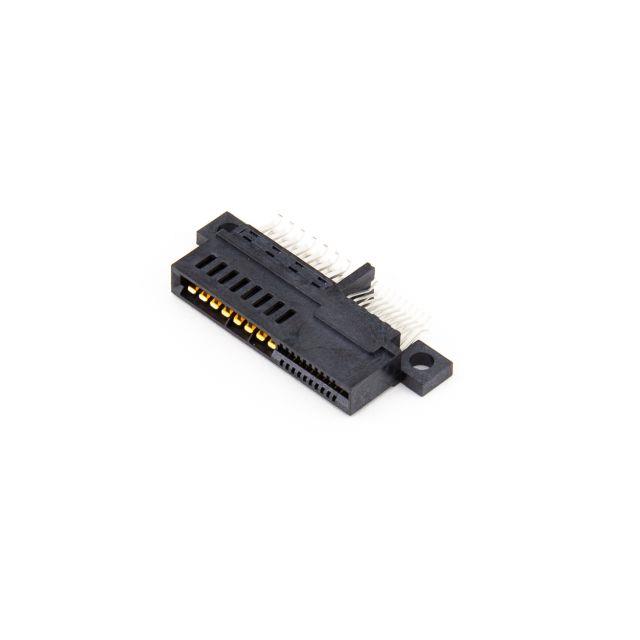

Image shown is a representation only
Manufacturer
Manufacturer No
9302-2A1S24P11ACB30DA
Packaging
Tray
Description
Power+Signal Edge card connect
Detailed Description
60 (24 + 36 Power) Position Female Connector Non Specified - Dual Edge Gold Black
Datasheet
Color
Black
Gender
Female
Series
9302
Features
Board Guide
Read Out
Dual
Card Type
Non Specified - Dual Edge
Packaging
Tray
Termination
Solder
Manufacturer
Oupiin
Mounting Type
Through Hole
Card Thickness
0.062" (1.57mm)
Contact Finish
Gold
Number of Rows
2
Contact Material
Copper, Phosphor Bronze
Base Product Number
9302-2
Number of Positions
60 (24 + 36 Power)
Material - Insulation
Liquid Crystal Polymer (LCP)
Operating Temperature
-55°C ~ 105°C
Contact Finish Thickness
30.0µin (0.76µm)
Number of Positions/Bay/Row
18; 12
| Attribute | Value |
|---|---|
| Color | Black |
| Gender | Female |
| Series | 9302 |
| Features | Board Guide |
| Read Out | Dual |
| Card Type | Non Specified - Dual Edge |
| Packaging | Tray |
| Termination | Solder |
| Manufacturer | Oupiin |
| Mounting Type | Through Hole |
| Card Thickness | 0.062" (1.57mm) |
| Contact Finish | Gold |
| Number of Rows | 2 |
| Contact Material | Copper, Phosphor Bronze |
| Base Product Number | 9302-2 |
| Number of Positions | 60 (24 + 36 Power) |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -55°C ~ 105°C |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Positions/Bay/Row | 18; 12 |
