Step1: Product

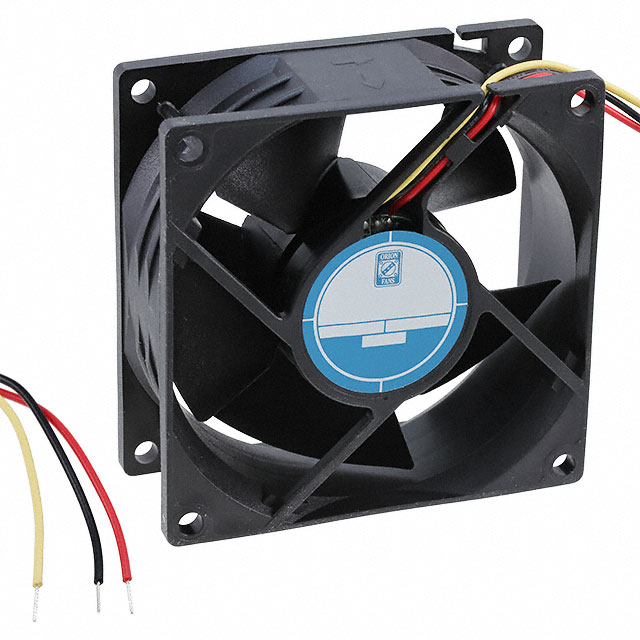

Orion Fans OD8032-24HHB02A
Image shown is a representation only
Manufacturer
Manufacturer No
OD8032-24HHB02A
Packaging
Bulk
Description
FAN AXIAL 80X32MM 24VDC WIRE
Detailed Description
Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 55.4 CFM (1.55m³/min) 3 Wire Leads
Datasheet
Mfr
Orion Fans
RPM
4200 RPM
Noise
44.0dB
Width
32.00mm
Series
OD8032
Weight
0.238 lb (107.95 g)
Air Flow
55.4 CFM (1.55m³/min)
Fan Type
Tubeaxial
Features
Locked Rotor Sensor
Packaging
Bulk
Termination
3 Wire Leads
Bearing Type
Ball
Power (Watts)
4.32 W
Voltage Range
17 ~ 26.4VDC
Approval Agency
CE, cURus
Static Pressure
0.320 in H2O (79.7 Pa)
Voltage - Rated
24VDC
Lifetime @ Temp.
70000 Hrs @ 40°C
Material - Blade
Polybutylene Terephthalate (PBT)
Material - Frame
Polybutylene Terephthalate (PBT)
Size / Dimension
Square - 80mm L x 80mm H
Base Product Number
OD8032
Current Rating (Amps)
0.150A
Operating Temperature
14 ~ 158°F (-10 ~ 70°C)
| Attribute | Value |
|---|---|
| Mfr | Orion Fans |
| RPM | 4200 RPM |
| Noise | 44.0dB |
| Width | 32.00mm |
| Series | OD8032 |
| Weight | 0.238 lb (107.95 g) |
| Air Flow | 55.4 CFM (1.55m³/min) |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor |
| Packaging | Bulk |
| Termination | 3 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 4.32 W |
| Voltage Range | 17 ~ 26.4VDC |
| Approval Agency | CE, cURus |
| Static Pressure | 0.320 in H2O (79.7 Pa) |
| Voltage - Rated | 24VDC |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Size / Dimension | Square - 80mm L x 80mm H |
| Base Product Number | OD8032 |
| Current Rating (Amps) | 0.150A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
