Step1: Product
Orion Fans OD4010-24HSS

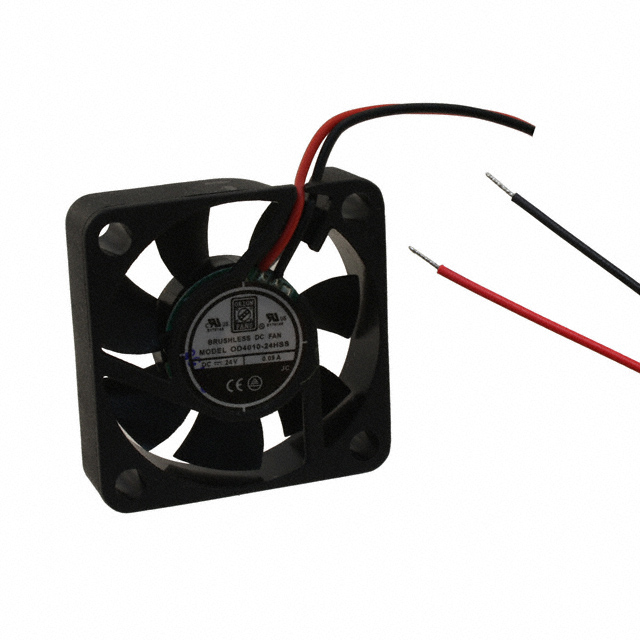

Image shown is a representation only
Manufacturer
Manufacturer No
OD4010-24HSS
Date Code
15+
Quantity
40
Availability
In Stock
Packaging
Box
Description
FAN AXIAL 40X10.5MM 24VDC WIRE
Detailed Description
Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Sealed Sleeve 7.0 CFM (0.196m³/min) 2 Wire Leads
Datasheet
Mfr
Orion Fans
RPM
4800 RPM
Noise
25.0dB(A)
Width
10.50mm
Series
OD4010
Weight
0.441 lb (200.00 g)
Air Flow
7.0 CFM (0.196m³/min)
Fan Type
Tubeaxial
Features
Auto Restart
Packaging
Box
Termination
2 Wire Leads
Bearing Type
Sealed Sleeve
Power (Watts)
1.45 W
Voltage Range
21.6 ~ 26.4VDC
Approval Agency
CE, cURus, TUV, UR
Static Pressure
0.200 in H2O (49.8 Pa)
Voltage - Rated
24VDC
Lifetime @ Temp.
50000 Hrs @ 45°C
Material - Blade
Polybutylene Terephthalate (PBT)
Material - Frame
Polybutylene Terephthalate (PBT)
Size / Dimension
Square - 40mm L x 40mm H
Base Product Number
OD4010
Current Rating (Amps)
0.090A
Operating Temperature
14 ~ 158°F (-10 ~ 70°C)
| Attribute | Value |
|---|---|
| Mfr | Orion Fans |
| RPM | 4800 RPM |
| Noise | 25.0dB(A) |
| Width | 10.50mm |
| Series | OD4010 |
| Weight | 0.441 lb (200.00 g) |
| Air Flow | 7.0 CFM (0.196m³/min) |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Packaging | Box |
| Termination | 2 Wire Leads |
| Bearing Type | Sealed Sleeve |
| Power (Watts) | 1.45 W |
| Voltage Range | 21.6 ~ 26.4VDC |
| Approval Agency | CE, cURus, TUV, UR |
| Static Pressure | 0.200 in H2O (49.8 Pa) |
| Voltage - Rated | 24VDC |
| Lifetime @ Temp. | 50000 Hrs @ 45°C |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Size / Dimension | Square - 40mm L x 40mm H |
| Base Product Number | OD4010 |
| Current Rating (Amps) | 0.090A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
