Step1: Product

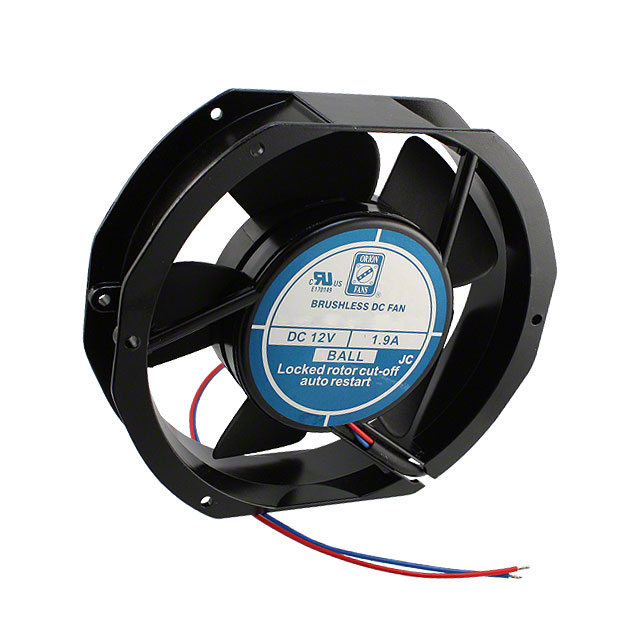

Orion Fans OD172SAPL-12HB
Image shown is a representation only
Manufacturer
Manufacturer No
OD172SAPL-12HB
Packaging
Box
Description
FAN AXIAL 172X38.5MM 12VDC WIRE
Detailed Description
Fan Tubeaxial 12VDC Rectangular/Rounded - 172mm L x 150mm H Ball 225.0 CFM (6.30m³/min) 2 Wire Leads
Datasheet
Mfr
Orion Fans
RPM
4000 RPM
Noise
55.0dB
Width
38.50mm
Series
OD172SAPL
Weight
1.7 lbs (760.0 g)
Air Flow
225.0 CFM (6.30m³/min)
Fan Type
Tubeaxial
Features
Auto Restart
Packaging
Box
Termination
2 Wire Leads
Bearing Type
Ball
Voltage Range
8 ~ 14VDC
Approval Agency
cURus, TUV
Static Pressure
0.730 in H2O (181.8 Pa)
Voltage - Rated
12VDC
Lifetime @ Temp.
60000 Hrs @ 45°C
Material - Blade
Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Frame
Aluminum
Size / Dimension
Rectangular/Rounded - 172mm L x 150mm H
Base Product Number
OD172SAP
Current Rating (Amps)
2A
Operating Temperature
-4 ~ 167°F (-20 ~ 75°C)
| Attribute | Value |
|---|---|
| Mfr | Orion Fans |
| RPM | 4000 RPM |
| Noise | 55.0dB |
| Width | 38.50mm |
| Series | OD172SAPL |
| Weight | 1.7 lbs (760.0 g) |
| Air Flow | 225.0 CFM (6.30m³/min) |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Packaging | Box |
| Termination | 2 Wire Leads |
| Bearing Type | Ball |
| Voltage Range | 8 ~ 14VDC |
| Approval Agency | cURus, TUV |
| Static Pressure | 0.730 in H2O (181.8 Pa) |
| Voltage - Rated | 12VDC |
| Lifetime @ Temp. | 60000 Hrs @ 45°C |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Frame | Aluminum |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H |
| Base Product Number | OD172SAP |
| Current Rating (Amps) | 2A |
| Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
