Step1: Product

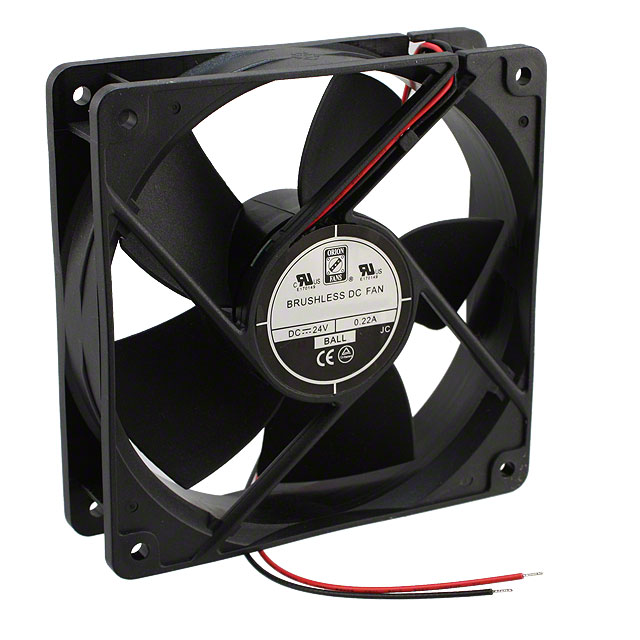

Orion Fans OD1232-24MB
Image shown is a representation only
Manufacturer
Manufacturer No
OD1232-24MB
Packaging
Box
Description
FAN AXIAL 120X32MM 24VDC WIRE
Detailed Description
Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 107.0 CFM (3.00m³/min) 2 Wire Leads
Datasheet
Mfr
Orion Fans
RPM
3300 RPM
Noise
48.0dB
Width
32.00mm
Series
OD1232
Air Flow
107.0 CFM (3.00m³/min)
Fan Type
Tubeaxial
Packaging
Box
Termination
2 Wire Leads
Bearing Type
Ball
Voltage Range
12 ~ 27.8VDC
Approval Agency
cURus, TUV
Static Pressure
0.330 in H2O (82.2 Pa)
Voltage - Rated
24VDC
Lifetime @ Temp.
60000 Hrs @ 40°C
Material - Blade
Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Frame
Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Size / Dimension
Square - 120mm L x 120mm H
Base Product Number
OD1232
Current Rating (Amps)
0.280A
Operating Temperature
-4 ~ 176°F (-20 ~ 80°C)
| Attribute | Value |
|---|---|
| Mfr | Orion Fans |
| RPM | 3300 RPM |
| Noise | 48.0dB |
| Width | 32.00mm |
| Series | OD1232 |
| Air Flow | 107.0 CFM (3.00m³/min) |
| Fan Type | Tubeaxial |
| Packaging | Box |
| Termination | 2 Wire Leads |
| Bearing Type | Ball |
| Voltage Range | 12 ~ 27.8VDC |
| Approval Agency | cURus, TUV |
| Static Pressure | 0.330 in H2O (82.2 Pa) |
| Voltage - Rated | 24VDC |
| Lifetime @ Temp. | 60000 Hrs @ 40°C |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Size / Dimension | Square - 120mm L x 120mm H |
| Base Product Number | OD1232 |
| Current Rating (Amps) | 0.280A |
| Operating Temperature | -4 ~ 176°F (-20 ~ 80°C) |
