Step1: Product

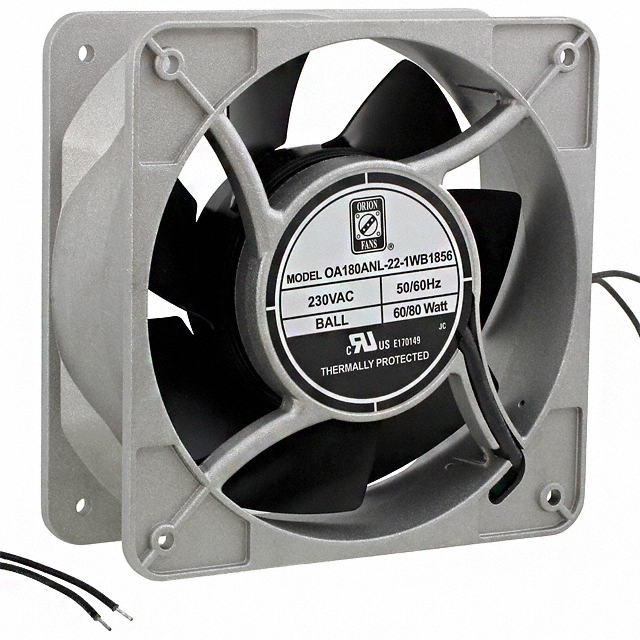

Orion Fans OA180ANL-22-1WB1856
Image shown is a representation only
Manufacturer
Manufacturer No
OA180ANL-22-1WB1856
Packaging
Box
Description
FAN AXIAL 180X65MM 230VAC WIRE
Detailed Description
Fan Tubeaxial 230VAC Square - 180mm L x 180mm H Ball 330.0 CFM (9.24m³/min) 2 Wire Leads
Datasheet
RPM
3250 RPM
Noise
65.0dB
Width
65.00mm
Series
OA180ANL
Weight
3.7 lbs (1.7 kg)
Air Flow
330.0 CFM (9.24m³/min)
Fan Type
Tubeaxial
Features
Thermal Overload Protector (TOP)
Packaging
Box
Termination
2 Wire Leads
Bearing Type
Ball
Manufacturer
Orion Fans
Power (Watts)
80.0W
Voltage Range
200 ~ 240VAC
Approval Agency
cURus, TUV
Static Pressure
0.800 in H2O (199.3 Pa)
Voltage - Rated
230VAC
Lifetime @ Temp.
50000 Hrs @ 55°C
Material - Blade
Metal
Material - Frame
Aluminum
Size / Dimension
Square - 180mm L x 180mm H
Ingress Protection
IP56 - Dust Protected, Water Resistant
Base Product Number
OA180AN
Operating Temperature
-22 ~ 176°F (-30 ~ 80°C)
| Attribute | Value |
|---|---|
| RPM | 3250 RPM |
| Noise | 65.0dB |
| Width | 65.00mm |
| Series | OA180ANL |
| Weight | 3.7 lbs (1.7 kg) |
| Air Flow | 330.0 CFM (9.24m³/min) |
| Fan Type | Tubeaxial |
| Features | Thermal Overload Protector (TOP) |
| Packaging | Box |
| Termination | 2 Wire Leads |
| Bearing Type | Ball |
| Manufacturer | Orion Fans |
| Power (Watts) | 80.0W |
| Voltage Range | 200 ~ 240VAC |
| Approval Agency | cURus, TUV |
| Static Pressure | 0.800 in H2O (199.3 Pa) |
| Voltage - Rated | 230VAC |
| Lifetime @ Temp. | 50000 Hrs @ 55°C |
| Material - Blade | Metal |
| Material - Frame | Aluminum |
| Size / Dimension | Square - 180mm L x 180mm H |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Base Product Number | OA180AN |
| Operating Temperature | -22 ~ 176°F (-30 ~ 80°C) |
