Step1: Product

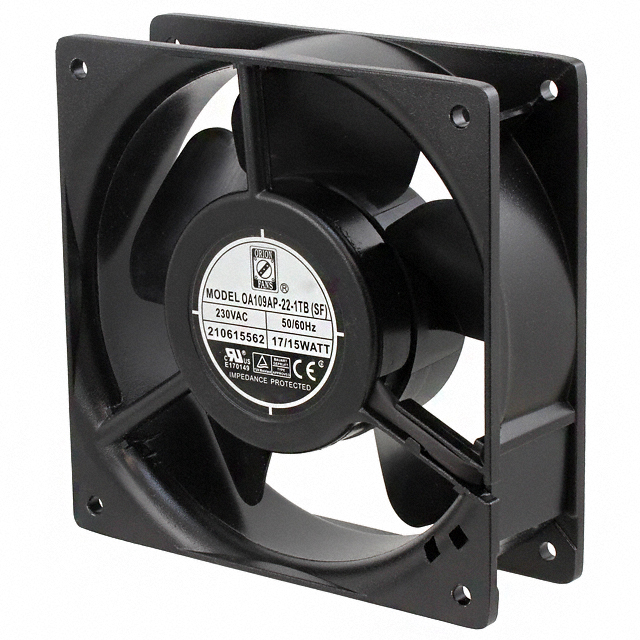

Orion Fans OA109AP-22-1TBSF
Image shown is a representation only
Manufacturer
Manufacturer No
OA109AP-22-1TBSF
Packaging
Bulk
Description
FAN AXIAL 120X38MM 230VAC TERM
Detailed Description
Fan Tubeaxial 230VAC Square - 120mm L x 120mm H Ball 106.0 CFM (2.97m³/min) 2 Terminals
DataSheet
RPM
3100 RPM
Noise
46.0dB
Width
38.50mm
Series
OA109
Weight
1.1 lbs (499.0 g)
Air Flow
106.0 CFM (2.97m³/min)
Fan Type
Tubeaxial
Features
Salt Fog Rated
Packaging
Bulk
Part Status
Active
Termination
2 Terminals
Bearing Type
Ball
Manufacturer
Orion Fans
Power (Watts)
15.00W
Approval Agency
cURus
Static Pressure
0.320 in H2O (79.7 Pa)
Voltage - Rated
230VAC
Lifetime @ Temp.
40000 Hrs @ 40°C
Material - Blade
Polybutylene Terephthalate (PBT)
Material - Frame
Aluminum
Size / Dimension
Square - 120mm L x 120mm H
Base Product Number
OA109AP
Current Rating (Amps)
0.080A
Operating Temperature
-4 ~ 158°F (-20 ~ 70°C)
| Attribute | Value |
|---|---|
| RPM | 3100 RPM |
| Noise | 46.0dB |
| Width | 38.50mm |
| Series | OA109 |
| Weight | 1.1 lbs (499.0 g) |
| Air Flow | 106.0 CFM (2.97m³/min) |
| Fan Type | Tubeaxial |
| Features | Salt Fog Rated |
| Packaging | Bulk |
| Part Status | Active |
| Termination | 2 Terminals |
| Bearing Type | Ball |
| Manufacturer | Orion Fans |
| Power (Watts) | 15.00W |
| Approval Agency | cURus |
| Static Pressure | 0.320 in H2O (79.7 Pa) |
| Voltage - Rated | 230VAC |
| Lifetime @ Temp. | 40000 Hrs @ 40°C |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Size / Dimension | Square - 120mm L x 120mm H |
| Base Product Number | OA109AP |
| Current Rating (Amps) | 0.080A |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
