Step1: Product
ORIENTAL TECHNOLOGY 0805RBD0070S01

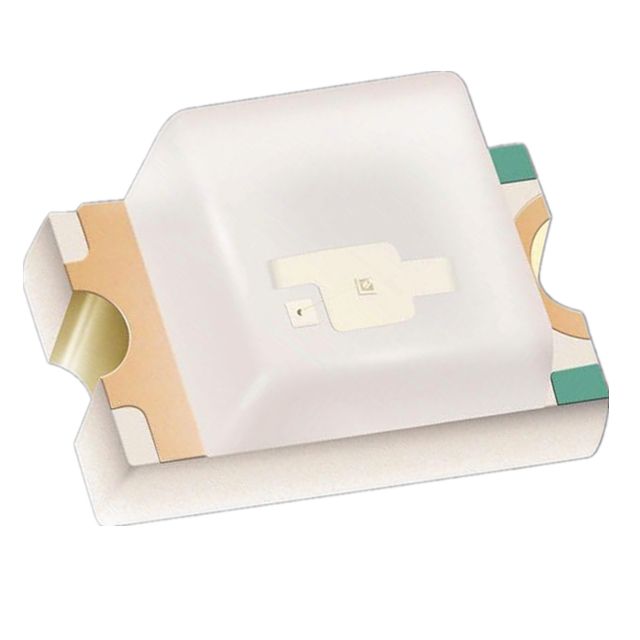

Image shown is a representation only
Manufacturer
Manufacturer No
0805RBD0070S01
Package
0805 (2012 Metric)
Packaging
Tape & Reel (TR)
Description
LED RED CLEAR 2012 SMD
Detailed Description
Red 620nm LED Indication - Discrete 2V 0805 (2012 Metric)
DataSheet
Mfr
ORIENTAL TECHNOLOGY
Color
Red
Series
0805
Lens Size
2.00mm x 1.20mm
Packaging
Tape & Reel (TR)
Lens Color
Colorless
Lens Style
Rectangle with Flat Top
Part Status
Active
Height (Max)
0.80mm
Configuration
Standard
Mounting Type
Surface Mount
Viewing Angle
120°
Current - Test
20mA
Package / Case
0805 (2012 Metric)
Size / Dimension
2.00mm L x 1.25mm W
Lens Transparency
Clear
Wavelength - Peak
630nm
Millicandela Rating
110mcd
Wavelength - Dominant
620nm
Supplier Device Package
2012
Voltage - Forward (Vf) (Typ)
2V
| Attribute | Value |
|---|---|
| Mfr | ORIENTAL TECHNOLOGY |
| Color | Red |
| Series | 0805 |
| Lens Size | 2.00mm x 1.20mm |
| Packaging | Tape & Reel (TR) |
| Lens Color | Colorless |
| Lens Style | Rectangle with Flat Top |
| Part Status | Active |
| Height (Max) | 0.80mm |
| Configuration | Standard |
| Mounting Type | Surface Mount |
| Viewing Angle | 120° |
| Current - Test | 20mA |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Lens Transparency | Clear |
| Wavelength - Peak | 630nm |
| Millicandela Rating | 110mcd |
| Wavelength - Dominant | 620nm |
| Supplier Device Package | 2012 |
| Voltage - Forward (Vf) (Typ) | 2V |
