Step1: Product
OptiFuse RS16-400

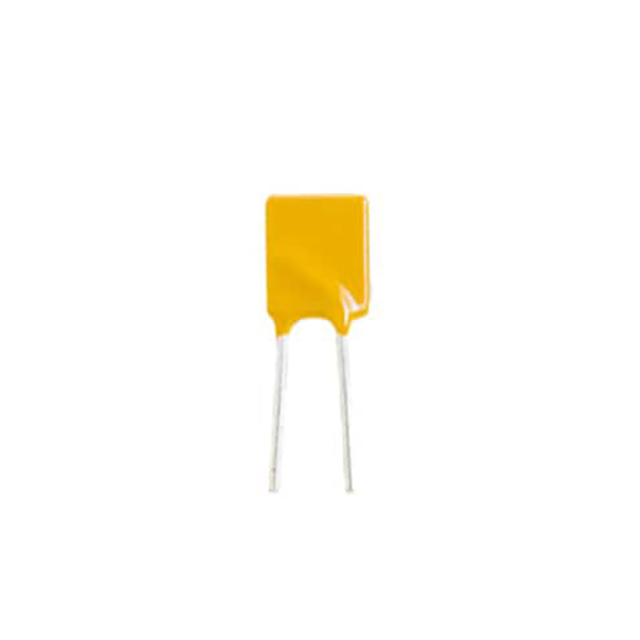

Image shown is a representation only
Manufacturer
Manufacturer No
RS16-400
Package
Radial, Disc
Packaging
Bulk
Description
PTC RESET FUSE 16V 4A RADIAL
Detailed Description
Polymeric PTC Resettable Fuse 16V 4 A Ih Through Hole Radial, Disc
DataSheet
Type
Polymeric
Series
RS16
Packaging
Bulk
Part Status
Active
Lead Spacing
0.201" (5.10mm)
Manufacturer
OptiFuse
Time to Trip
3.5 s
Current - Max
100 A
Mounting Type
Through Hole
Voltage - Max
16V
Package / Case
Radial, Disc
Approval Agency
cULus, TUV
Size / Dimension
0.350" L x 0.118" W (8.90mm x 3.00mm)
Current - Trip (It)
6.8 A
Height - Seated (Max)
0.504" (12.80mm)
Operating Temperature
-40°C ~ 85°C
Current - Hold (Ih) (Max)
4 A
Resistance - Initial (Ri) (Min)
20 mOhms
Resistance - Post Trip (R1) (Max)
63 mOhms
| Attribute | Value |
|---|---|
| Type | Polymeric |
| Series | RS16 |
| Packaging | Bulk |
| Part Status | Active |
| Lead Spacing | 0.201" (5.10mm) |
| Manufacturer | OptiFuse |
| Time to Trip | 3.5 s |
| Current - Max | 100 A |
| Mounting Type | Through Hole |
| Voltage - Max | 16V |
| Package / Case | Radial, Disc |
| Approval Agency | cULus, TUV |
| Size / Dimension | 0.350" L x 0.118" W (8.90mm x 3.00mm) |
| Current - Trip (It) | 6.8 A |
| Height - Seated (Max) | 0.504" (12.80mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 4 A |
| Resistance - Initial (Ri) (Min) | 20 mOhms |
| Resistance - Post Trip (R1) (Max) | 63 mOhms |
